ACS Smart Card Reader Module

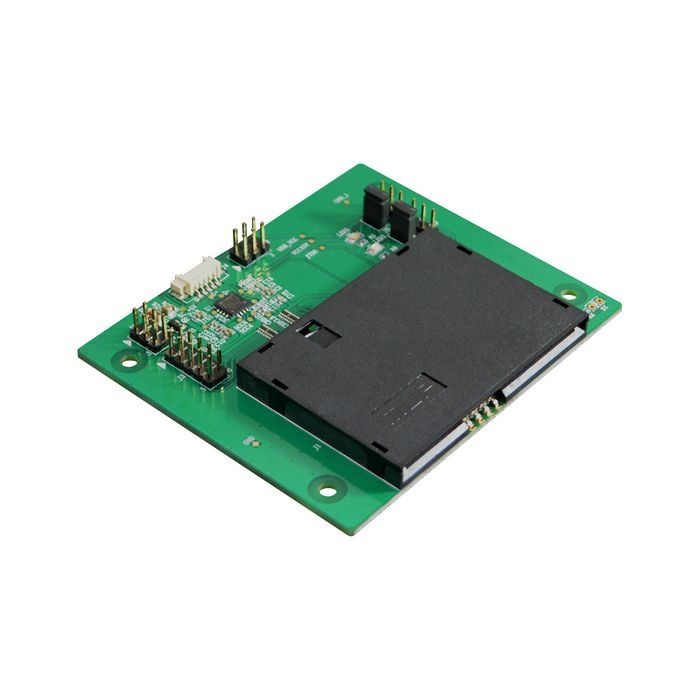

The ACM39U-Y3 provides a solution for secured access control by employing the globally recognized ACR39 core. It comes in module form to enable easy implementation of smart card-based solutions in embedded systems. The ACM39U-Y3 uses the latest microchip technology, bringing you high security for your confidential files in a convenient and easy way.

The ACM39U-Y3 supports ISO 7816 Class A, B, and C smart cards. Also, it works with memory cards and microprocessor cards with T=0 and T=1 protocol. It features a USB Full Speed interface and a smart card read/write speed of 600 Kbps. This highly durable device can last for at least 100,000 card insertion cycles.

The ACM39U-Y3 is also easy to install and use with various environments. Being PC/SC and CCID–compliant, its drivers are compatible with operating systems such as Windows®, Linux®, and Mac OS®. In addition, the ACM39U-Y3 can also be integrated with systems running the Android™ platform with versions 3.1 and later.

With its various features, the ACM39U-Y3 is a powerful component that is ideal for Security, e-Banking, e-Payment, and e-Government applications.

Datasheet ( Engels )

Specifications
