ACS ACR1281U-C2, USB-A, 120.5 x 72 x 20.4 mm, 140 g, Standard Type A, From USB port, 12 Mbps
Op voorraad: 117 stuks

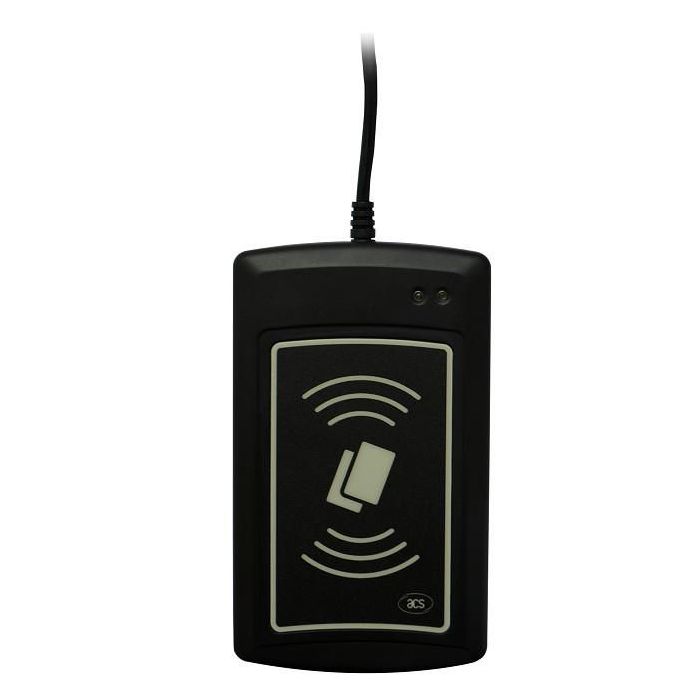

ACR1281U-C2 Card UID Reader is a contactless card reader that automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
ACR1281U-C2 Card UID Reader is a contactless card reader that automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card.
When presented with a contactless card (such as a MIFARE card), the ACR1281U-C2 retrieves the card’s UID and automatically returns it to the PC. The reader enables output of the UID directly to any editor, e.g. Notepad, MS Excel, MS Word, etc. With the UID, cardholders can be identified correctly in different applications, such as identity verification, time & attendance, and access control. ACR1281U-C2 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.
Because ACR1281U-C2 Card UID Reader is compliant with the Human Interface Device (HID) standard, it reduces driver installation issues during integration into PC environments. It can support most operating systems, including Microsoft® Windows, Linux and other embedded systems.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Datasheet ( Engels )
Specifications
| Cable length | 2 m |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Application area | Access control, Banking & payments, Healthcare |
| Compatible products | Access Control, Banking & Payment, e-Government, e-Healthcare, e-Purse & Loyalty, Network Security, Transportation |
| Frequency | 13,56 MHz |
| Maximum read range | 5 cm |
| Product type | Universal smart card reader |
| Export Control Classification Number (ECCN) | 5A992 |
| Operating relative humidity (H-H) | 0 - 90 procent |
| Operating temperature (T-T) | 0 - 60 °C |
| Compliance industry standards | ISO 14443 A & B Parts 1-4, MIFARE® |
| Interface | USB 2.0 |
| Supported protocols | ISO 14443-4 Compliant Card, T=CL, MIFARE® Classic Card, T=CL |
| Current consumption (max) | 0,2 A |
| Operating voltage | 5 V |
| Power source | USB |
| Certification | CE, FCC, ISO 14443, RoHS, USB Full Speed, USB-HID |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Other operating systems supported | Android |
| Windows operating systems supported | Yes |
| Warranty | 1 year |
| Merk | ACS |
|---|---|
| Part number (MPN) | ACR1281U-C2ACSA |
| EAN | 4897129310082 |
