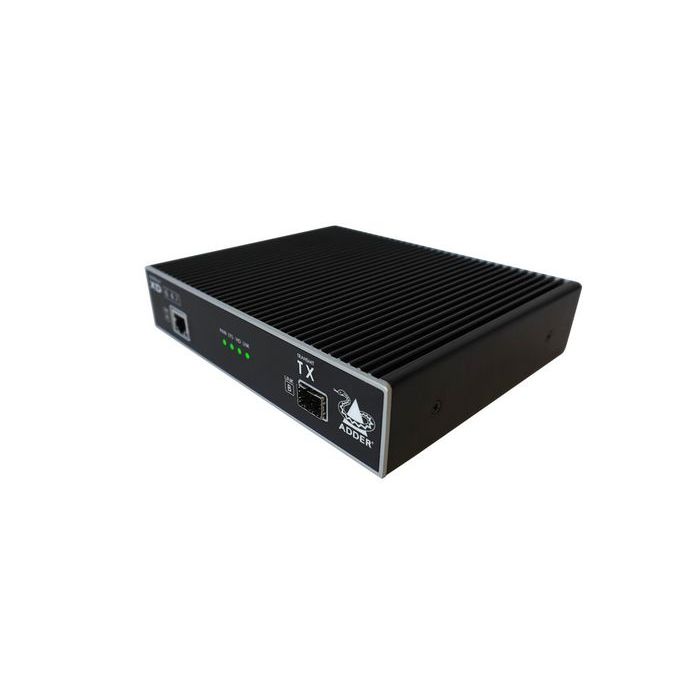

Adder Link XD642, KVMA, DisplayPort, USB2.0
Op voorraad: 4 stuks
The ADDERLink XD642 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The ADDERLink XD642 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.
Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance 4K KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.
manual pdf ( Engels ) User manual
leaflet ( Engels ) Product Brochure
Specifications
| Cable types supported | Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber |
|---|---|
| Certification | CE, FCC |
| Colour depth | 8 Bit |
| Connectivity technology | Wired |
| LED indicators | Status |
| Material | Metal |
| Maximum digital resolution | 4096 x 2160 Pixels |
| Maximum transfer distance | 4000 m |
| Plug and Play | Yes |
| Product colour | Black |
| Supported resolutions | up to 4096x2160 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling |
| Type | Transmitter & receiver |
| USB 2.0 ports quantity | 6 |
| Operating relative humidity (H-H) | 0 - 80 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| AC adapter included | Yes |
| PC Audio in | Yes |
| PC Audio out | Yes |
| RJ-11 ports quantity | 2 |
| RJ-45 ports quantity | 2 |
| AC adapter output voltage | 12 V |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | DisplayPort |
| RJ-45 ports quantity (receiver) | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Transmitter video port type | DisplayPort |
| Receiver depth | 14,8 cm |
| Receiver height | 3,9 cm |
| Receiver weight | 1240 g |
| Receiver width | 18,6 cm |
| Transmitter depth | 14,8 cm |
| Transmitter height | 3,9 cm |
| Transmitter weight | 1290 g |
| Transmitter width | 18,6 cm |
| Warranty | 2 years |
| Merk | Adder |
|---|---|
| Part number (MPN) | XD642P-DP-EURO |
| EAN | 5055109106042 |
