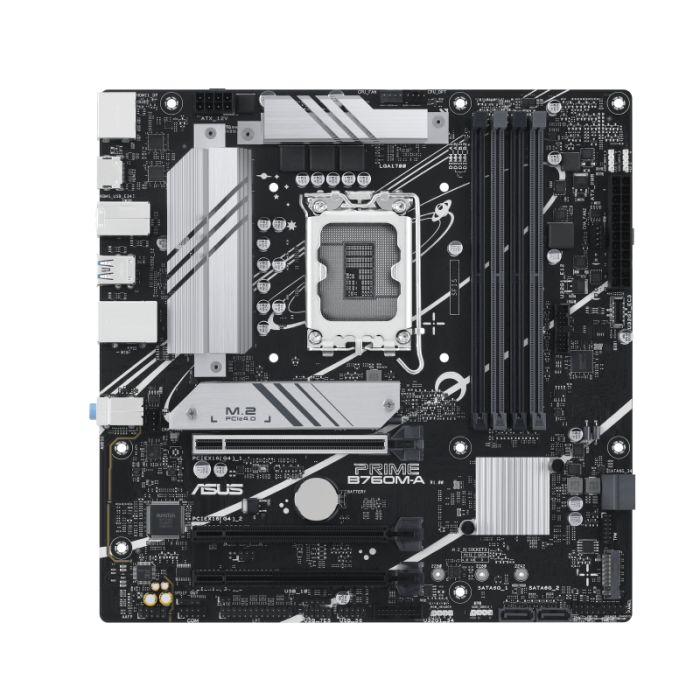

ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX
Leverbaar op bestelling
€ 165,95
Op voorraad
SKU
W129036800
ASUS PRIME B760M-A-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 128 GB
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
ASUS PRIME B760M-A-CSM. Processorfabrikant: Intel, Processor socket: LGA 1700, Compatibele processors: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Ondersteunde geheugen types: DDR5-SDRAM, Maximum intern geheugen: 128 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA III, Ondersteunde types opslag-drives: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component voor: PC, Moederbord form factor: micro ATX, Moederbord chipset familie: Intel
- Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- PC micro ATX Intel B760 7.1 kanalen
- DDR5-SDRAM 4 DIMM Maximum intern geheugen: 128 GB
- HDD & SSD M.2, SATA III Aantal storage drives ondersteund: 6
- BIOS type: UEFI AMI 128 Mbit Clear CMOS knop
- 2.5 Gigabit Ethernet Wifi
Specificaties
| Processorfabrikant | Intel |
|---|---|
| Processor socket | LGA 1700 |
| Compatibele processors | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Ondersteunde geheugen types | DDR5-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| ECC-compatibiliteit | Niet-ECC |
| Supported memory clock speeds | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Ondersteunde geheugenkloksnelheid (max) | 7200 MHz |
| Maximum intern geheugen | 128 GB |
| Niet gebufferd geheugen | Ja |
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
| Maximum aantal HDD's per behuizing | 4 |
| Aantal storage drives ondersteund | 6 |
| Ondersteuning voor parallel processing | Niet ondersteund |
| USB 2.0 aansluitingen | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 3 |
| Aantal SATA III connectors | 4 |
| S/PDIF uitgang | Ja |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| Voorpaneel-connector | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| Aansluitingen voor behuizingsventilatoren | 2 |
| EPS power connector (8-pin) | Ja |
| COM aansluitingen | 1 |
| TPM connector | Ja |
| 12V vermogen-connector | Ja |
| RGB LED-aansluitrail | Ja |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| PS/2 poort(en) | 1 |
| Aantal HDMI-poorten | 2 |
| Aantal DisplayPorts | 1 |
| Hoofdtelefoonuitgangen | 1 |
| Lijningang | Ja |
| Microfoon, line-in ingang | Ja |
| WiFi-AP antenna jack | 1 |
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wifi | Ja |
| Chipset moederbord | Intel B760 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Component voor | PC |
| Moederbord form factor | micro ATX |
| Moederbord chipset familie | Intel |
| Ondersteunt Windows | Windows 11, Windows 10 |
| PCI Express x16 (Gen 4.x) sleuven | 3 |
| Aantal M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 128 Mbit |
| Clear CMOS knop | Ja |
| Audio-uitgang | Realtek 7.1 Surround Sound High Definition Audio CODEC*<br />- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking<br />- Supports up to 24-Bit/192 kHz playback<br /><strong>Audio Features </strong><br />- Audio Shielding <br />- Premium audio capacitors<br />- Dedicated audio PCB layers<br />* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Speciale eigenschappen | <strong>Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*</strong><br /><strong>Intel<sup>®</sup> Core<sup>TM</sup> Processors (14<sup>th</sup> & 13<sup>th</sup> & 12<sup>th</sup> Gen)</strong><br />M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)<br /><strong>Intel<sup>®</sup> B760 Chipset</strong><br />M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)<br />4 x SATA 6Gb/s ports<br />* Intel<sup>®</sup> Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Andere kenmerken | 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*<br />Dual Channel Memory Architecture<br />Supports Intel® Extreme Memory Profile (XMP)<br />OptiMem II<br />* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/<br />* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Grafische uitvoer | 1 x DisplayPort**<br />2 x HDMI<span style="font-size: 13.3333px;"><sup>TM</sup></span> ports*** <br />* Graphics specifications may vary between CPU types. Please refer to <u>www.intel.com</u> for any updates.<br />** Supports max. 4K@60Hz as specified in DisplayPort 1.4. <br />*** Supports 4K@60Hz as specified in HDMI<span style="font-size: 13.3333px;"><sup>TM</sup></span> 2.1. |
| Merk | Asus |
|---|---|
| Part number (MPN) | 90MB1EK0-M1EAYC |
