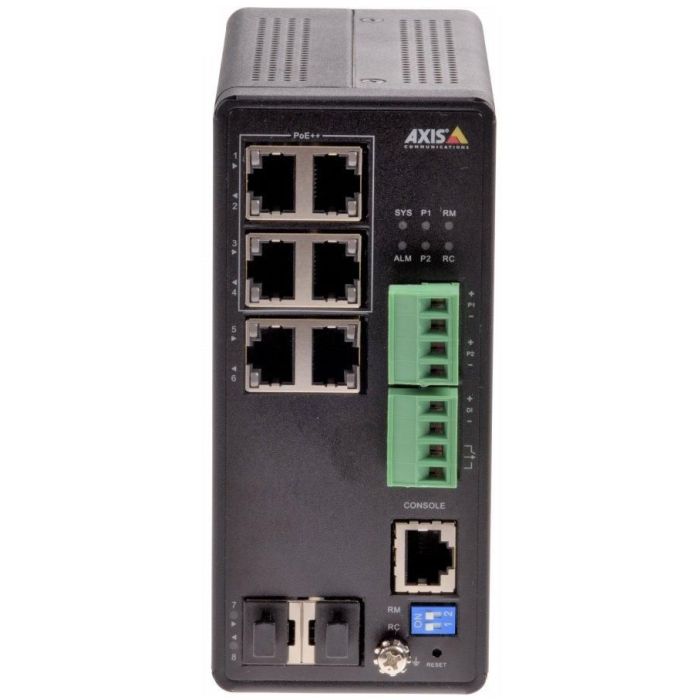

Axis T8504-R INDUSTRIAL POE SWITCH
Op voorraad: 22 stuks
AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -40 °C to 75 °C (-40 °F to 167 °F), making it perfect for high demanding installations such as alongside highways and tunnels.
manual pdf ( Engels ) User manual
leaflet ( Engels ) Product Brochure
leaflet ( Frans )
Specifications
| Jumbo frames | 9216 |
|---|---|
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Throughput | 11,9 Mpps |
| Certification | EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003 |
| Housing material | Aluminium |
| Product colour | Black |
| Switch type | Managed |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1x |
| VLAN support | Yes |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Fiber optic connector | SFP |
| Power connector | DC-in jack |
| DC input voltage | 54 - 57 V |
| Surge protection | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Authentication type | RADIUS |
| Password protection | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv3 |
| Warranty | 5 years |
| Merk | Axis |
|---|---|
| Part number (MPN) | 01633-001 |
| EAN | 7331021066199 |
