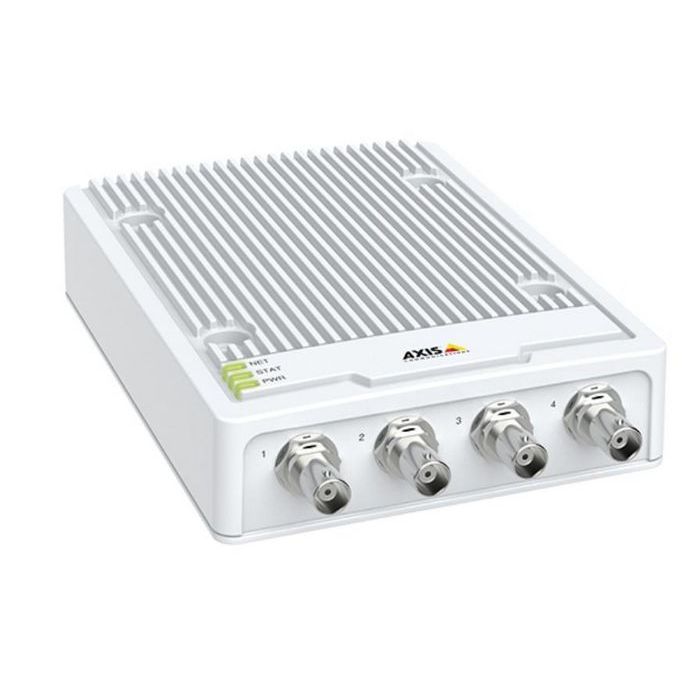

Axis M7104 VIDEO ENCODER
Op voorraad: 11 stuks
AXIS M7104 is a cost-effective, 4-channel video encoder that adds the benefits of IP surveillance to an analog camera system. It supports standard-resolution analog cameras as well as PTZ control over RS-485/422.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
AXIS M7104 is a cost-effective, 4-channel video encoder that adds the benefits of IP surveillance to an analog camera system. It supports standard-resolution analog cameras as well as PTZ control over RS-485/422. The encoder features a memory card slot for edge storage and support for intelligent analytics such as motion detection and active tampering alarm. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
leaflet ( Frans )
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
leaflet ( Frans )
manual pdf ( Engels ) User manual
Specifications
| LED indicators | Status |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Operating relative humidity (H-H) | 10 - 85 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Manual | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| BNC input ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 2 |
| Power consumption (typical) | 4,7 W |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | HTTPS |
| Video motion detection | Yes |
| Flash memory | 512 MB |
| Image settings | Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness |
| Internal memory | 1024 MB |
| Product colour | White |
| PTZ control | Yes |
| Wall mountable | Yes |
| Channels quantity | 4 kanalen |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 720 x 576 Pixels |
| NTSC resolutions | 720x480 Pixels |
| PAL resolutions | 720x576 Pixels |
| Video compression formats | AVC, H.264, H.265, HEVC, MPEG4 |
| Warranty | 5 years |
| Merk | Axis |
|---|---|
| Part number (MPN) | 01679-001 |
| EAN | 7331021066397 |
