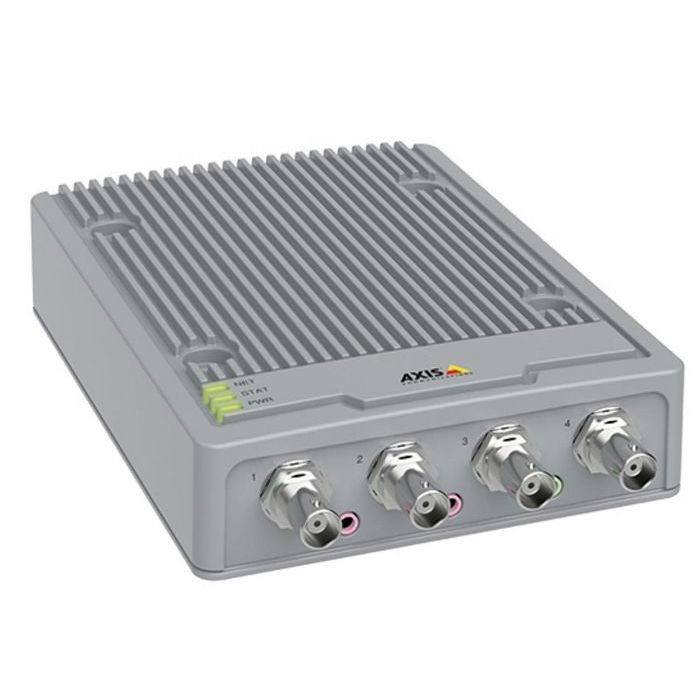

Axis P7304 VIDEO ENCODER
Op voorraad: 151 stuks
AXIS P7304 is a full-featured, 4-channel video encoder that adds the benefits of IP surveillance to any analog camera system. It supports standard and HD analog cameras up to 4K resolution, and analog PTZ cameras.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
AXIS P7304 is a full-featured, 4-channel video encoder that adds the benefits of IP surveillance to any analog camera system. It supports standard and HD analog cameras up to 4K resolution, and analog PTZ cameras. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements. The encoder features two-way audio, I/O ports, and a memory card slot for edge storage. It also comes with intelligent analytics such as motion detection, audio detection and tampering alarm.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
leaflet ( Frans )
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
leaflet ( Frans )
manual pdf ( Engels ) User manual
Specifications
| LED indicators | Status |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Operating relative humidity (H-H) | 10 - 85 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Manual | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| BNC input ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O terminal ports | 1 |
| Line-in | Yes |
| Line-out | Yes |
| Microphone in | Yes |
| RS-485 ports | 2 |
| Power consumption (typical) | 8,2 W |
| Active tampering alarm | Yes |
| Audio detection | Yes |
| IP address filtering | Yes |
| Security algorithms | HTTPS |
| Video motion detection | Yes |
| Flash memory | 512 MB |
| Image settings | Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness |
| Internal memory | 1024 MB |
| Product colour | Grey |
| PTZ control | Yes |
| Wall mountable | Yes |
| Channels quantity | 4 kanalen |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 1920 x 1080 Pixels |
| NTSC resolutions | 720x480 Pixels |
| PAL resolutions | 720x576 Pixels |
| Video compression formats | AVC, H.264, H.265, HEVC, MPEG4 |
| Warranty | 5 years |
| Merk | Axis |
|---|---|
| Part number (MPN) | 01680-001 |
| EAN | 7331021066403 |
