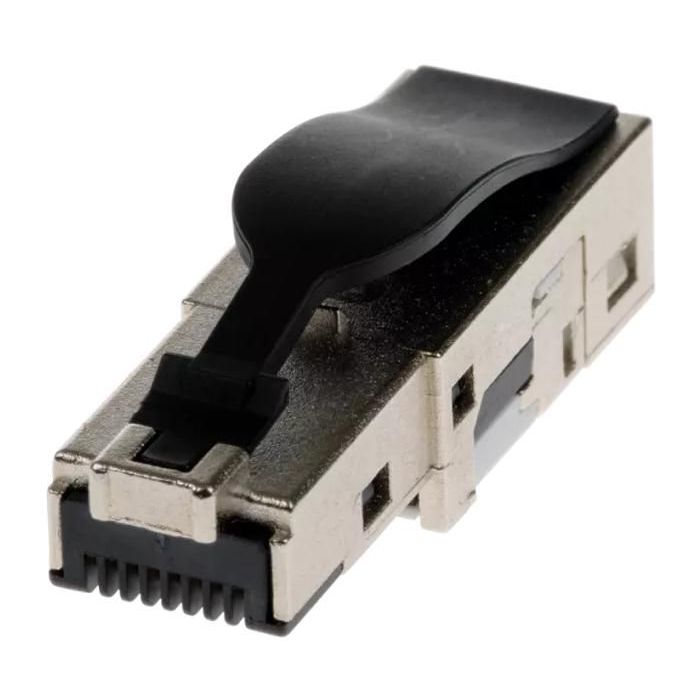

Axis RJ45 FIELD CONNECTOR 10 PCS
Op voorraad: 12 stuks
RJ45 Field Connector is easy to assemble and thanks to its compact size, it’s ideal for terminating CAT6a cables directly in a wide range of Axis network devices. The connector is compliant with the latest standard ANSI/TIA-568.2-D, which allows MPTL-installations (modular plug terminated link).
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
RJ45 Field Connector is easy to assemble and thanks to its compact size, it’s ideal for terminating CAT6a cables directly in a wide range of Axis network devices. The connector is compliant with the latest standard ANSI/TIA-568.2-D, which allows MPTL-installations (modular plug terminated link). It’s suitable for IEEE 802.3af, 802.3at and 802.3bt. The connector is sold in packages of 10.
leaflet ( Engels ) Product Brochure
leaflet ( Frans )
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| AWG wire size | 22/26 |
|---|---|
| Cable standard | Cat5e/Cat6 |
| Certification | ANSI/TIA-568.2-D, EN 60603-7-51, ISO/IEC 11801 Ed.2.2: 2011-06/ EN 50173-2: 2011-09, ISO/IEC 24702/ EN 50173-3: 2011-09, ISO/IEC 15018/ EN 50173-4: 2011-09 |
| Connector form factor | Straight |
| Connector gender | Male |
| Connector(s) | RJ-45 |
| Material | Metal, Plastic |
| Product colour | Black, Metallic |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Quantity per pack | 10 stuk(s) |
| Warranty | 5 years |
| Merk | Axis |
|---|---|
| Part number (MPN) | 01996-001 |
| EAN | 7331021070578 |
