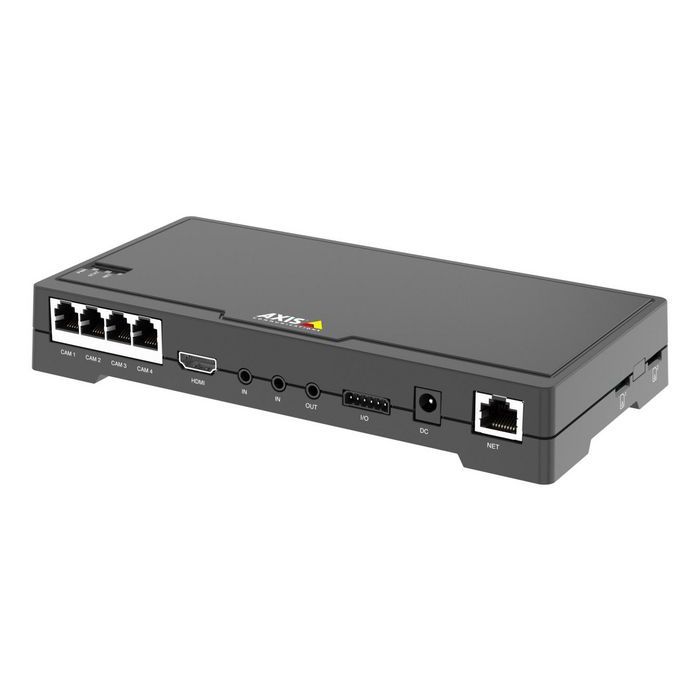

Axis FA54 MAIN UNIT
Op voorraad: 7 stuks
AXIS FA54 supports up to four AXIS FA Sensor Units, enabling cost-effective and highly discreet surveillance of four closely situated areas with one system. The main unit can stream full frame rate HDTV 1080p videos from four sensor units simultaneously using one IP address.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
AXIS FA54 supports up to four AXIS FA Sensor Units, enabling cost-effective and highly discreet surveillance of four closely situated areas with one system. The main unit can stream full frame rate HDTV 1080p videos from four sensor units simultaneously using one IP address. Ideal for retail applications, AXIS FA54 also supports quad view streaming and has an HDMITM port for connection to a surveillance or public view monitor. The unit uses Forensic WDR (wide dynamic range) that is tuned for motion. Axis Zipstream video compression technology reduces bandwidth and storage requirements.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
other digital assets ( Engels ) How to assign an IP address and access your device
leaflet ( Engels ) Product Brochure
leaflet ( Frans )
Specifications
| Product colour | Black |
|---|---|
| Operating relative humidity (H-H) | 10 - 85 procent |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| AC adapter included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Alarm input channels | 4 |
| Alarm output channels | 4 |
| Audio formats supported | AAC, ADPCM, G.711, G.726, OPUS |
| Channels quantity | 4 kanalen |
| Internal memory | 1024 MB |
| Languages support | English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese |
| Maximum frame rate | 30 fps |
| Maximum resolution | 1920 x 1080 Pixels |
| Maximum video resolution | 1920 x 1080 Pixels |
| Resolution at capture speed | 1280x720@50fps, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@30fps, 640x480@60fps |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 480 x 270 |
| Supported video modes | 1080p, 480p, 576p, 720p |
| Video formats supported | H.264, M-JPEG |
| Audio output | 1 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10, 100, 1000 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Supported network protocols | IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| AC adapter input voltage | 12 V |
| Output voltage | 12 V |
| Power consumption (max) | 30 W |
| Power consumption (min) | 14 W |
| Power consumption (typical) | 14 W |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Warranty | 5 years |
| Merk | Axis |
|---|---|
| Part number (MPN) | 0878-002 |
| EAN | 7331021058866 |
