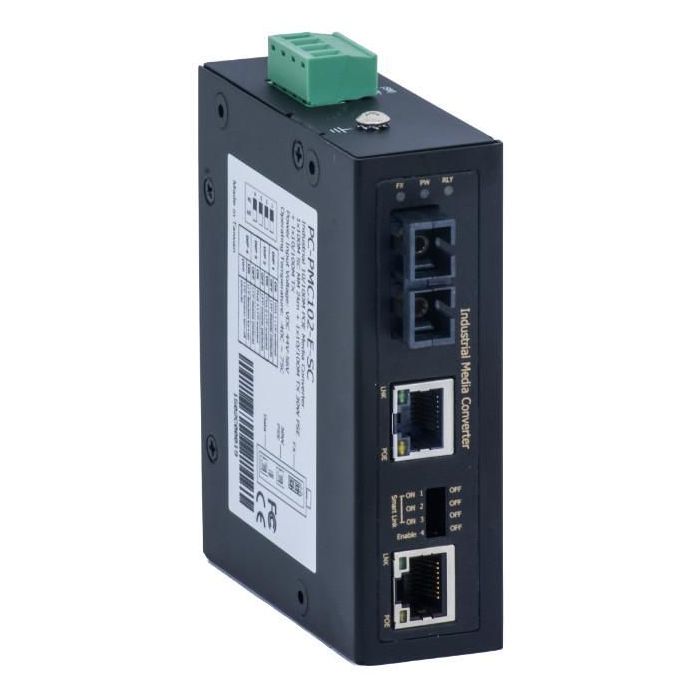

Barox Media-conv. DIN-rail, extended temp.
Leverbaar op bestelling
€ 369,95
Op voorraad
SKU
PC-HPMC102E-CM
Media converter for DIN rail, extended temperature range, 2x10/100/1000TX PoE+ 802.1af/at/bt, RJ45, 1x SFP 2 fibre multimode , 1 Port PoE++, excluded powersupply
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Media converter for DIN rail, extended temperature range, 2x10/100/1000TX PoE+ 802.1af/at/bt, RJ45, 1x SFP 2 fibre multimode , 1 Port PoE++, excluded powersupply
leaflet ( Engels ) Product Brochure
Specifications
| Certification | EN50121-3-2, EN50121-4, EN50155, EN50155 / EN600-2-32, EN50155 / EN60068-2-27, EN50155 / EN60068-2-6, EN55011, EN55022/24, EN60950-1 |
|---|---|
| DIN rail mounting | Yes |
| Internal | No |
| Product colour | Black |
| Converter input interface | 100Base-TX, 10Base-T |
| Converter output interface | 100Base-FX |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10, 100 |
| Fiber ethernet cabling technology | 100BASE-FX |
| Flow control support | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Operating temperature (T-T) | -40 - 75 °C |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power consumption (typical) | 2 W |
| Warranty | 3 years |
| Merk | Barox |
|---|---|
| Part number (MPN) | PC-HPMC102E-CM |
