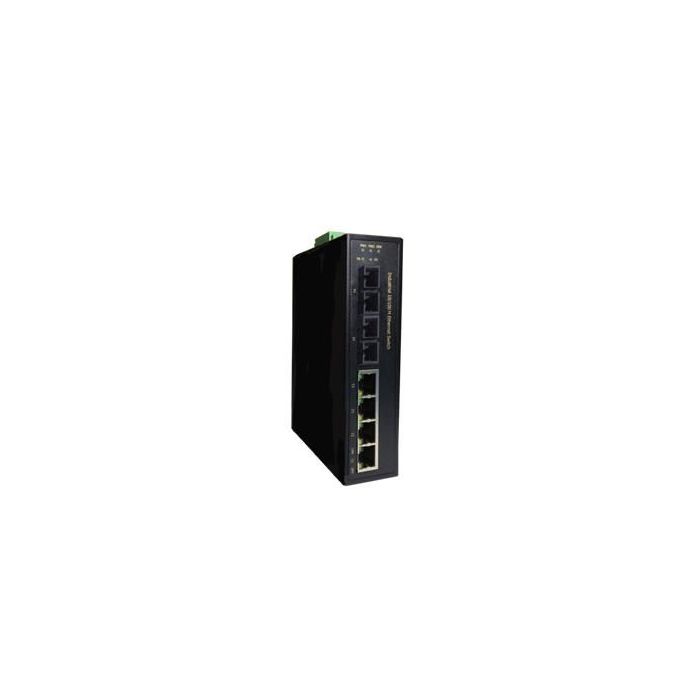

Barox Switch DIN-rail, 100m, no mgmt., ext. temp
Leverbaar op bestelling
€ 235,95
Op voorraad
SKU
PC-IA800
Switches for DIN rail, 100MBit/s, without management, extended temperature range, 8x10/100TX, RJ45
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Switches for DIN rail, 100MBit/s, without management, extended temperature range, 8x10/100TX, RJ45
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| Compliance certificates | CE |
|---|---|
| MAC address table | 1024 entries |
| Store-and-forward | Yes |
| Switching capacity | 1,6 Gbit/s |
| Certification | EN50121-3-2, EN50121-4, EN50155, EN50155 / EN600-2-32, EN50155 / EN60068-2-27, EN50155 / EN60068-2-6, EN55011, EN55022/24, EN60950-1, FCC, VCCI, IEC EN60950-1 |
| DIN rail mounting | Yes |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Stackable | No |
| Wall mountable | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat5e |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Ethernet LAN data rates | 10, 100 |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Mean time between failures (MTBF) | 510304 uur |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| DC input voltage | 12 - 56 V |
| Power consumption (max) | 4 W |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| Sustainability certificates | CE |
| Sustainability compliance | Yes |
| Warranty | 3 years |
| Merk | Barox |
|---|---|
| Part number (MPN) | PC-IA800 |
