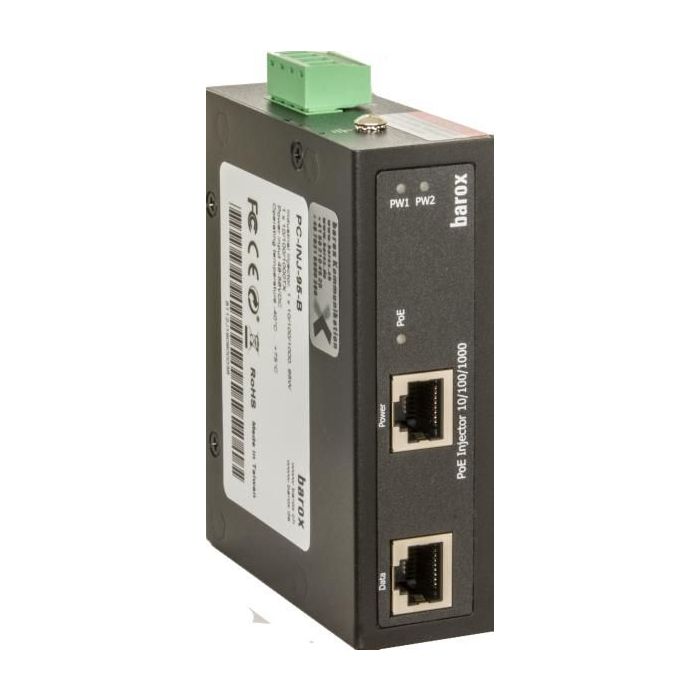

Barox PoE-Injektor for DIN-rail
Leverbaar op bestelling
€ 245,94
Op voorraad
SKU
PC-INJ-30W-B
PoE-Iinjector for DIN Rail mount. extended temperature range, power supply from 12VDC PoE+ 30W, 2x10/100/1000TX
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
PoE-Iinjector for DIN Rail mount. extended temperature range, power supply from 12VDC PoE+ 30W, 2x10/100/1000TX
manual pdf ( Engels ) User manual
leaflet ( Engels ) Product Brochure
Specifications
| Compliance certificates | CE |
|---|---|
| Certification | FCC, IP30 |
| Electromagnetic compatibility | CE, FCC, VCCI |
| LED indicators | Yes |
| Pin assignment & polarity | Mode A: Pin 1 (V-), 2 (V-), 3 (V+), 6 (V+), Mode B: Pin 4 (V+), 5 (V+), 7 (V-), 8 (V-) |
| Power protection features | Overload |
| Product colour | Black |
| Rack mounting | No |
| Safety | UL 60950-1, IEC EN60950-1 |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Compliance industry standards | EN50121-3-2, EN50121-4, EN50155, EN50155 / EN600-2-32, EN50155 / EN60068-2-27, EN50155 / EN60068-2-6, EN55011, EN55022/24, EN60950-1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -40 - 85 °C |
| Number of products included | 1 stuk(s) |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Output power | 60 W |
| Power consumption (typical) | 2 W |
| Sustainability certificates | CE |
| Warranty | 3 years |
| Merk | Barox |
|---|---|
| Part number (MPN) | PC-INJ-30W-B |
| EAN | 5715328171992 |
