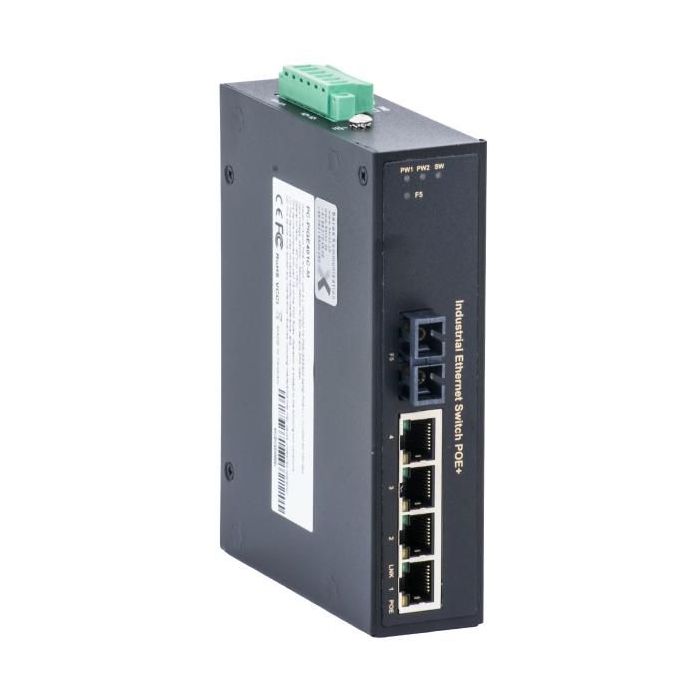

Barox Switch DIN-rail, 100m, no mgmt., ext temp
Leverbaar op bestelling
€ 383,95
Op voorraad
SKU
PC-PIGE401C-S
Switches for DIN rail, 100MBit/s, without management, extended temperature range, 4x10/100TX, RJ45 / 1x100FX-SM, SC-Duplex, 4xPoE / PoE+
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Switches for DIN rail, 100MBit/s, without management, extended temperature range, 4x10/100TX, RJ45 / 1x100FX-SM, SC-Duplex, 4xPoE / PoE+
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| MAC address table | 1024 entries |
|---|---|
| Store-and-forward | Yes |
| Switching capacity | 1 Gbit/s |
| Certification | EN50121-3-2, EN50121-4, EN50155, EN50155 / EN600-2-32, EN50155 / EN60068-2-27, EN50155 / EN60068-2-6, EN55011, ISM, EN55022/24, EN60950-1, FCC Class A, CE, UL |
| DIN rail mounting | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Switch layer | L2 |
| Switch type | Unmanaged |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Ethernet LAN data rates | 10, 100 |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Operating temperature (T-T) | -40 - 75 °C |
| Fiber ethernet cabling technology | 100BASE-FX |
| Fiber type | Single-mode |
| Transmission distance (max) | 10 km |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Installed SFP modules quantity | 1 |
| Installed SFP+ modules quantity | 0 |
| DC input voltage | 9 - 56 V |
| Power consumption (max) | 4 W |
| Power consumption (typical) | 3,76 W |
| Power protection features | Overload |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Warranty | 3 years |
| Merk | Barox |
|---|---|
| Part number (MPN) | PC-PIGE401C-S |
| EAN | 5715328159501 |
