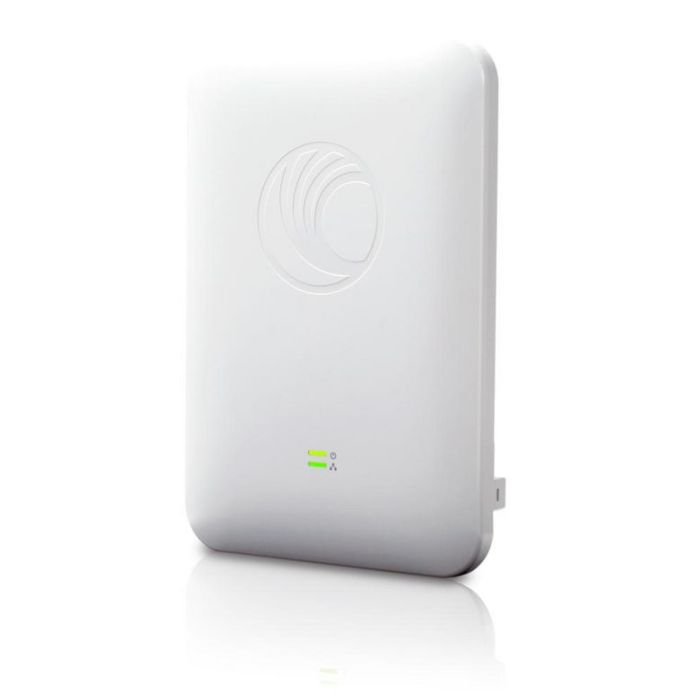

Cambium Networks cnPilot e501S Wi-Fi Access Point, Outdoor, 802.11ac, IP67, Sector Antenna
Op voorraad: 1 stuks
€ 843,95
Op voorraad
SKU
PL-501S000A-EU
The cnPilot™ e501S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 90° ~ 120° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The cnPilot™ e501S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 90° ~ 120° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.
Specifications
| Antenna features | Integrated antenna |
|---|---|
| Antenna gain level (max) | 13 dBi |
| Antenna type | Internal |
| Polarization | Dual polarization |
| Certification | FCC, CE, IC, UL, EN60601-1-2, WEEE/RoHS |
| LED indicators | Yes |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Airtime Fairness (ATF) | Yes |
| Auto MDI/MDI-X | Yes |
| Band steering | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Cyclic Delay Diversity (CDD) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Fast roaming | Yes |
| Fit AP mode features | Wireless distribution system (WDS) |
| Frequency band | 2.4 - 2.2484, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Maximal-Ratio Combining (MRC) | Yes |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| MIMO | Yes |
| Modulation | 16-QAM, 256-QAM, 64-QAM, BPSK, QPSK |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Spread spectrum method | DSSS, OFDM |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Command-line interface (CLI) | Yes |
| Syslog | Yes |
| Operating temperature (T-T) | -30 - 60 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| Power consumption (max) | 13 W |
| Power consumption (typical) | 8 W |
| Power over Ethernet (PoE) | No |
| DHCP server | Yes |
| Management protocols | SNMP v1, v2c, v3 |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | 802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK |
| VPN support | L2TP, L2oGRE, PPPoE |
| Warranty | 1 year |
| Merk | Cambium Networks |
|---|---|
| Part number (MPN) | PL-501S000A-EU |
| EAN | 5704174278030 |
