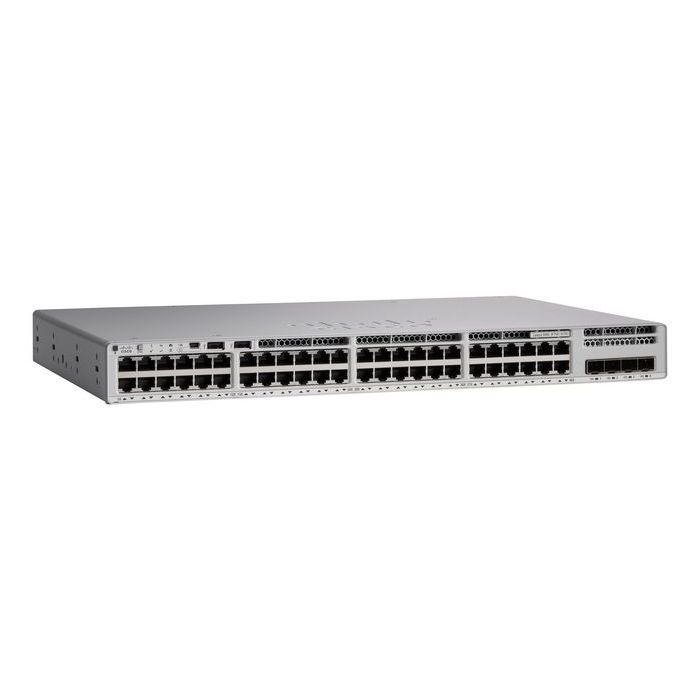

Cisco Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials

Leverbaar op bestelling

€ 5.780,94
Op voorraad
SKU
W125853027

**Extend Intent-Based Networking Everywhere**

  • Voor 16:00 besteld, snel verzonden
  • Gratis verzending in Nederland vanaf € 150
  • 14 dagen bedenktijd en retour
  • Persoonlijk advies van onze specialisten

**Extend Intent-Based Networking Everywhere**

Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

leaflet ( Engels ) Product Brochure

Specifications

Forwarding rate130,95 Mpps
Jumbo frames9198
Jumbo frames supportYes
MAC address table16000 entries
Packet buffer memory6 MB
Switching capacity176 Gbit/s
CertificationRoHS
Electromagnetic compatibility47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
Product colourGrey
SafetyIEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment
StackableYes
Quality of Service (QoS) supportYes
Switch layerL3
Switch typeManaged
Web-based managementYes
Multicast supportYes
10G supportYes
Copper ethernet cabling technology1000BASE-LX, 1000BASE-SX, 1000BASE-T, 100BASE-FX
IP routingYes
IPv4 routes3000
IPv6 routes1500
Network virtualization technologiesVirtual Extensible LAN (VXLAN)
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs1024
Routing entries3000
Spanning tree protocolYes
Heat dissipation3412 BTU/h
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 90 procent
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Flash memory4096 MB
Internal memory2048 MB
Mean time between failures (MTBF)346270 uur
Memory typeDRAM
Noise level42 dB
Plug and PlayYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity2
Installed SFP+ modules quantity2
SFP module slots quantity4
SFP+ module slots quantity4
USB 2.0 ports quantity3
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Input current6 - 12 A
Output current16,5 A
Output power1000 W
Power supply includedYes
Redundant power supply (RPS) supportYes
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity48
Total Power over Ethernet (PoE) budget740 W
Management protocolsSNMPv1/v2c/v3
Routing protocolsCDP, EIGRP, OSPF, RIP, VRRP
Access Control List (ACL)Yes
Security algorithms128-bit AES
Warranty3 Month(s)
Meer informatie
MerkCisco
Part number (MPN)C9200L-48P-4X-E
EAN8897281701922
