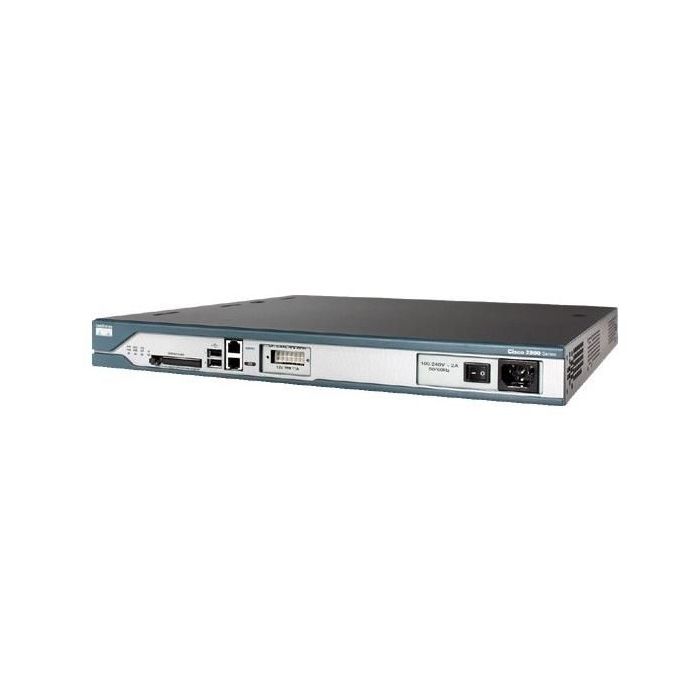

Cisco 2811 w/ AC PWR, 2FE, 4HWICs, 2PVDMs, 1NME, 2AIMS, IP BASE, 64F/256D
Leverbaar op bestelling
The Cisco 2811 Integrated Services Router is part of the Cisco 2800 Integrated Services Router Series which complements the Integrated Services Router Portfolio.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Cisco 2811 Integrated Services Router is part of the Cisco 2800 Integrated Services Router Series which complements the Integrated Services Router Portfolio.
The Cisco 2811 Integrated Services Router provides the following support:
- Wire-speed performance for concurrent services such as security and voice , and advanced services to multiple T1/E1/xDSL WAN rates
- Enhanced investment protection through increased performance and modularity
- Increased density through High-Speed WAN Interface Card Slots (four)
- Enhanced Network Module Slot
- Support for over 90 existing and new modules
- Support for majority of existing AIMs, NMs, WICs, VWICs, and VICs
- Two Integrated 10/100 Fast Ethernet ports
- Optional Layer 2 switching support with Power over Ethernet (PoE) (as an option)
Specifications
| LED indicators | Yes |
|---|---|
| Product colour | Multicolour |
| Rack capacity | 1U |
| Rack mounting | Yes |
| ADSL | Yes |
| Certification | - AS/NZS 3548 Class A, - CISPR22 Class A, - EN 300386, - EN300386, - EN50082-1, - EN55022 Class A, - EN55024/CISPR24, - EN61000-3-2, - EN61000-3-3, - EN61000-6-2, - FCC Part 15, - FIPS 140-2, - ICES-003 Class A, - VCCI Class A |
| Flash memory | 64 MB |
| Internal memory | 128 MB |
| Safety | UL 60950, CAN/CSA C22.2 No. 60950, IEC 6011 |
| Data transfer rate | 100 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100 |
| Supports ISDN connection | No |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 438.2 x 416.6 x 44.5 mm |
| Maximum data transfer rate | 0,1 Gbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 2 |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Power consumption (typical) | 160 W |
| Power source type | AC |
| Firewall security | Cisco IOS |
| VPN support | DES, 3DES, AES 128, AES 192, & AES 256 |
| 3G/4G USB modem compatibility | Yes |
| Warranty | 1 year |
| Merk | Cisco |
|---|---|
| Part number (MPN) | CISCO2811-RFB |
| EAN | 5712505646694 |
