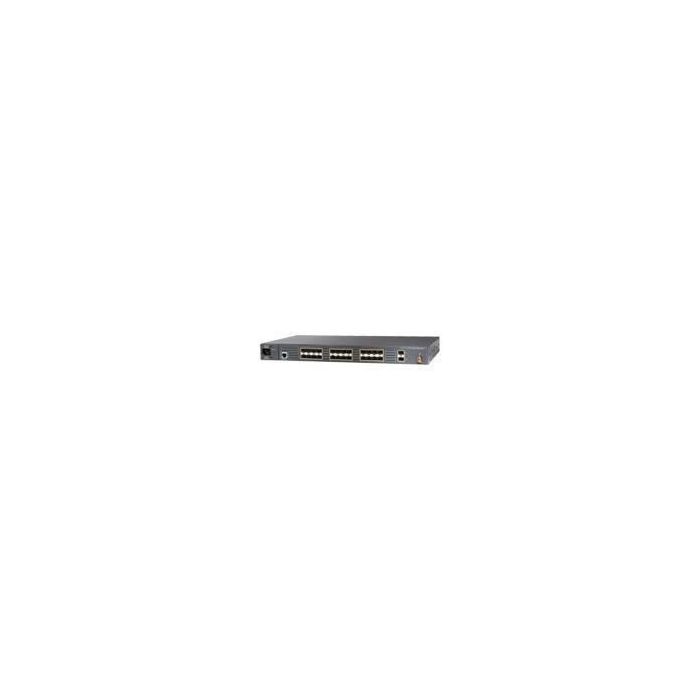

Cisco 8.8 Gbps, 6.5 mpps, 24 Ethernet 100 SFP ports, 2 x SFP, 1 RU, 2.9 kg
Leverbaar op bestelling
Cisco ME 3400 Series Ethernet Access Switches are a series of next-generation Layer 2 and Layer 3 customer-located devices for service providers. Its design is based on the experience learned from today's most widely deployed access switches, the Cisco Catalyst® 2950 and 3550 Series.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Cisco ME 3400 Series Ethernet Access Switches are a series of next-generation Layer 2 and Layer 3 customer-located devices for service providers. Its design is based on the experience learned from today's most widely deployed access switches, the Cisco Catalyst® 2950 and 3550 Series.
With service provider-friendly hardware and mission-specific software, the Cisco ME 3400 Series is the first Cisco access switch family optimized for both Ethernet-to-the-Home (ETTH) triple-play services and Ethernet-to-the-Business (ETTB) VPN services. It provides a complete security solution for Metro Ethernet access that includes subscriber, switch, and network protection. The Cisco ME 3400 Series supports multiple software images to provide a "pay-as-you-grow" deployment model. With service breadth spanning triple-play and Layer 2 and Layer 3 VPN services, lower total cost of ownership (TCO) and operating expenses can be achieved from a single ETTH and ETTB access solution.
- 24 Ethernet 100 SFP ports.
- 2 SFP-based Gigabit Ethernet and 100BASE-X ports.
- AC power supplies.
- 6.5-mpps forwarding rate.
- 1-RU multilayer switch.
- Ethernet access switch for low density FTTH deployments.
- 3 Cisco IOS Software feature image options (METROBASE, METROACCESS, and METROIPACCESS).
leaflet ( Engels ) Product Brochure
Specifications
| MAC address table | 8000 entries |
|---|---|
| Switching capacity | 8,8 Gbit/s |
| Throughput | 6,5 Mpps |
| Electromagnetic compatibility | FCC, EN 55022B, EN 55024, EN 300 386, GR-1089 CORE, VCCI, AS/NZS 3548 |
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | UL 60950, UL - CAN/CSA 22.2 No.60950, TUV/GS - EN 60950, A1-A4 & A11, CB to IEC 60950, NOM - NOM-019-SCFI, AS/NZS 3260, TS001, CE Marking, CLEI Coding |
| Stackable | Yes |
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 1000 |
| Full duplex | Yes |
| IP routing | Yes |
| Networking standards | IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Heat dissipation | 170 BTU/h |
| Non-operating altitude | 0 - 4570 m |
| Operating altitude | 0 - 4000 m |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Flash memory | 32 MB |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 396000 uur |
| Noise level | 48 dB |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 26 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 - 0.7 A |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 70 W |
| Power consumption (typical) | 50 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Warranty | 1 year |
| Merk | Cisco |
|---|---|
| Part number (MPN) | ME-3400-24FS-A-RFB |
| EAN | 5706998246790 |
