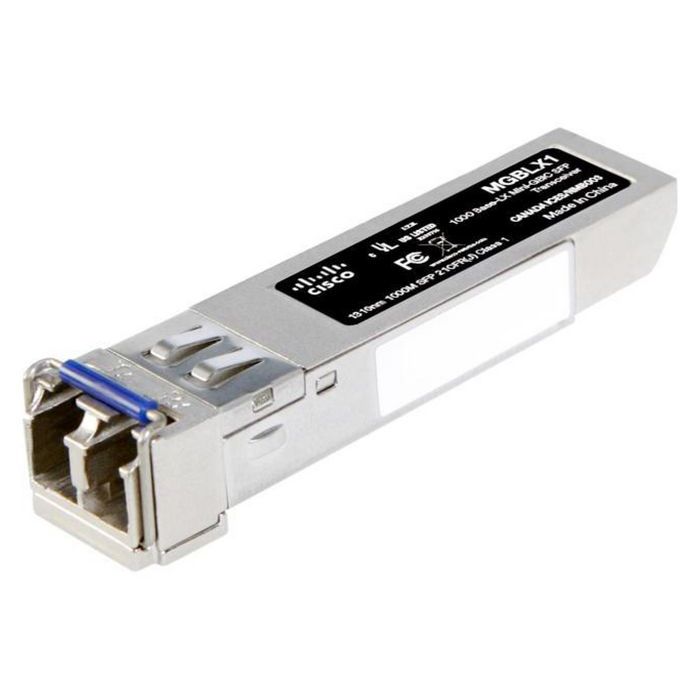

Cisco SB 1000BASE-LX SFP transceiver, for single-mode fiber, 1310 nm wavelength, support up to 10 km
Leverbaar op bestelling
€ 315,96
Op voorraad
SKU
MGBLX1
The Cisco MGBLX1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Cisco MGBLX1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.
The MGBLX1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 10 kilometers.
Specifications
| Certification | EN55022 Class B (CISPR 22B),, FCC Part 15 Class B,, VCCI Class B. |
|---|---|
| Safety | FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2 |
| Quantity per pack | 1 stuk(s) |
| Hot-swap | Yes |
| Plug and Play | Yes |
| Cabling technology | 1000Base-LX |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating relative humidity (H-H) | 10 - 85 procent |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90 procent |
| Storage temperature (T-T) | -40 - 85 °C |
| Connector(s) | LC-LC |
| Dimensions (WxDxH) | 13.4 x 55.7 x 8.5 mm |
| Fiber type | SMF |
| Full duplex | Yes |
| Interface | SFP |
| Transmit power range | -9.5 - -3 dBmW |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Connectivity technology | Wired |
| Power consumption (typical) | 1 W |
| Warranty | 5 years |
| Merk | Cisco SB |
|---|---|
| Part number (MPN) | MGBLX1 |
| EAN | 882658262791 |
