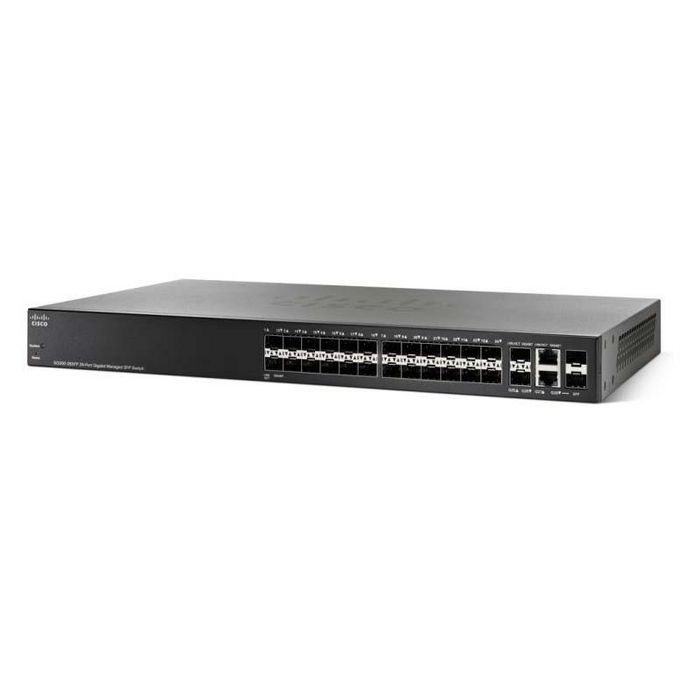

Cisco SB 24 SFP Gigabit slots, 2 Gigabit copper/SFP combo, 56Gbps, 2.7kg
Leverbaar op bestelling
The Cisco 350 Series, part of the Cisco Small Business line of network solutions, is a portfolio of affordable managed switches that provides a reliable foundation for your business network.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Cisco 350 Series, part of the Cisco Small Business line of network solutions, is a portfolio of affordable managed switches that provides a reliable foundation for your business network. These switches deliver the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco 350 Series provides the ideal combination of affordability and capabilities for small businesses and helps you create a more efficient, better-connected workforce.
The Cisco 350 Series is a broad portfolio of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Fast Ethernet and 10 to 52 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create exactly the right network foundation for your business. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco 350 Series Switches support the advanced security management capabilities and network features you need to support business-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| Forwarding rate | 41,66 Mpps |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 16384 entries |
| Number of IP interfaces | 128 |
| Number of queues | 8 |
| Number of static routes | 1024 |
| Packet buffer memory | 1,5 MB |
| Static route | Yes |
| Switching capacity | 56 Gbit/s |
| Throughput | 41,66 Mpps |
| Certification | UL, CSA, CE, FCC |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 1 ventilator(en) |
| Product colour | Black |
| Rack mounting | Yes |
| Reset button | Yes |
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast support | Yes |
| 10G support | No |
| Active link detection | Yes |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Cable types supported | Cat5, Cat6, Cat7 |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4094 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Heat dissipation | 117 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90 procent |
| Storage temperature (T-T) | -20 - 70 °C |
| Cables included | AC |
| Included power plug types | EU |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Built-in processor | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 101523 uur |
| Noise level | 43,6 dB |
| Telnet | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Fiber optic connector | SFP |
| SFP module slots quantity | 26 |
| USB 2.0 ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 260 V |
| Number of power supply units | 1 |
| Power consumption (max) | 34,3 W |
| Power over Ethernet (PoE) | No |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv6 ping, IPv6 Telnet, IPv6 tracert |
| Management protocols | SNMP v1/2c/3, HTTP/HTTPS, MIB, RMON, IPv4/IPv6 |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| Authentication | Guest VLAN, Port-based authentication, Web-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| DoS attack prevention | Yes |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Queue scheduling algorithms | WRR+SP |
| Root protection | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, MD5, SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Warranty | 1 year |
| Merk | Cisco SB |
|---|---|
| Part number (MPN) | SG350-28SFP-K9-EU-RFB |
