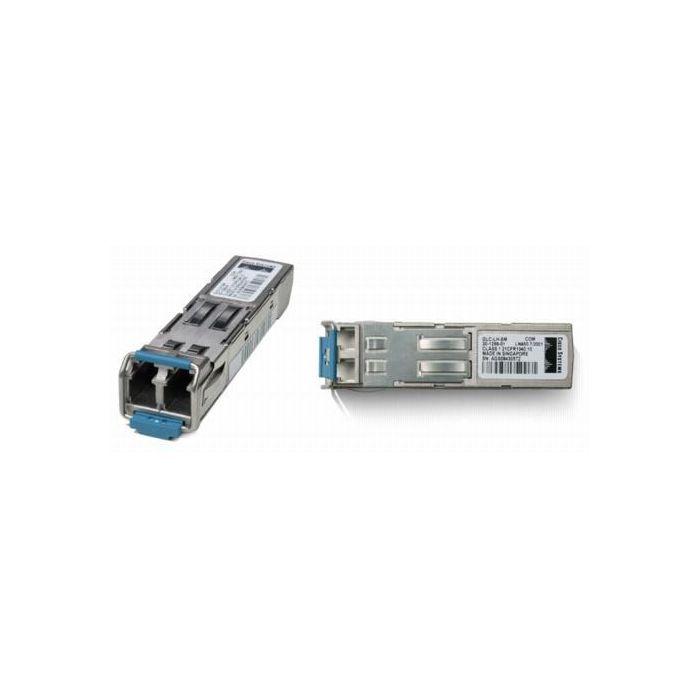

Cisco 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support
Leverbaar op bestelling
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
**1000BASE-SX SFP for Multimode Fiber Only**
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 μm multimode fiber cable.
Specifications
| Compliance industry standards | IEEE 802.3z |
|---|---|
| Safety | Laser Class I 21CFR1040 LN#50 7/2001, Laser Class I IEC 60825-1 |
| Hot-swap | Yes |
| Cabling technology | 1000BASE-SX |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating temperature (T-T) | -5 - 85 °C |
| Connector(s) | LC/PC |
| Dimensions (WxDxH) | 13.4 x 56.5 x 8.5 mm |
| Fiber type | MMF |
| Interface | SFP |
| Maximum transfer distance | 1000 m |
| Wavelength | 850 nm |
| Connectivity technology | Wired |
| Warranty | 1 year |
| Merk | Cisco |
|---|---|
| Part number (MPN) | SFP-GE-S-RFB |
