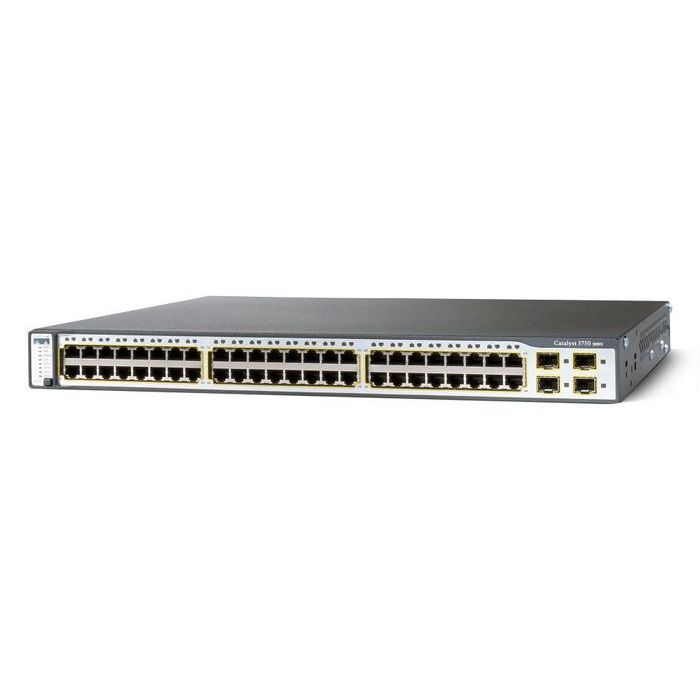

Cisco Catalyst 3750 48 10/100 ports & 4 SFP uplinks, PoE, SMI
Leverbaar op bestelling
The Cisco® Catalyst® 3750 Series switches are innovative switches that improve LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Cisco® Catalyst® 3750 Series switches are innovative switches that improve LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise™ technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system-one switch at a time.
Features:
• 48 Ethernet 10/100 ports with IEEE 802.3af and Cisco prestandard PoE and 4 SFP uplinks
• 32-Gbps, high-speed stacking bus
• Innovative stacking technology
• 1-RU stackable, multilayer switch
• Enterprise-class intelligent services delivered to the network edge
• SMI installed
• Basic RIP and static routing, upgradable to full dynamic IP routing
Specifications
| MAC address table | 12000 entries |
|---|---|
| Maximum data transfer rate | 0,1 Gbit/s |
| Switching capacity | 32 Gbit/s |
| Compatible products | Cisco IP phones, Cisco Aironet wireless LAN (WLAN) access points, any IEEE 802.3af-compliant end device |
| Safety | UL to UL 60950, -UL to CAN/CSA C22.2 No. 60950-00, TUV/GS to EN 60950:2000, CB to IEC 60950, NOM to NOM-019-SCFI, CE |
| Stackable | Yes |
| Switch type | Managed |
| Full duplex | Yes |
| Networking standards | IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 85 procent |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Bundled software | Cisco CMS Software, Cisco IOS Software, Standard Multilayer software Image (SMI) |
| Dimensions (WxDxH) | 445 x 378 x 44 mm |
| Electromagnetic emissions | FCC Part 15 Class A, CISPR22, CISPR24, VCCI Class A, AS/NZS 3548 Class A, CE, CNS 13438 Class A, MIC |
| I/O ports | 48x 10/100 ports, 4x SFP uplinks, AC Power port |
| Management platform | Cisco IOS CLI, Cisco Network Assistant, Switching Database Manager templates, Cisco AVVID, CMS |
| Packet transfer speed | 13.1 mpps |
| Power requirements | 100-240 VAC, 8.0-4.0A, 50-60 Hz |
| Internal memory | 16 MB |
| Mean time between failures (MTBF) | 166408 uur |
| Minimum RAM | 128 MB |
| Basic switching RJ-45 Ethernet ports quantity | 52 |
| Power consumption (typical) | 540 W |
| Data link protocols | Ethernet, Fast Ethernet |
| Management protocols | SSHP, SNMP, RMON, NTP, TFTP, Telnet |
| Switching protocols | DHCP, DTP, PAgP, LACP, RSTP, HSRP, IPv6, DVMRP, VTP, IGMP, TCP/UDP |
| Warranty | 1 year |
| Merk | Cisco |
|---|---|
| Part number (MPN) | WS-C3750-48PS-S-RFB |
