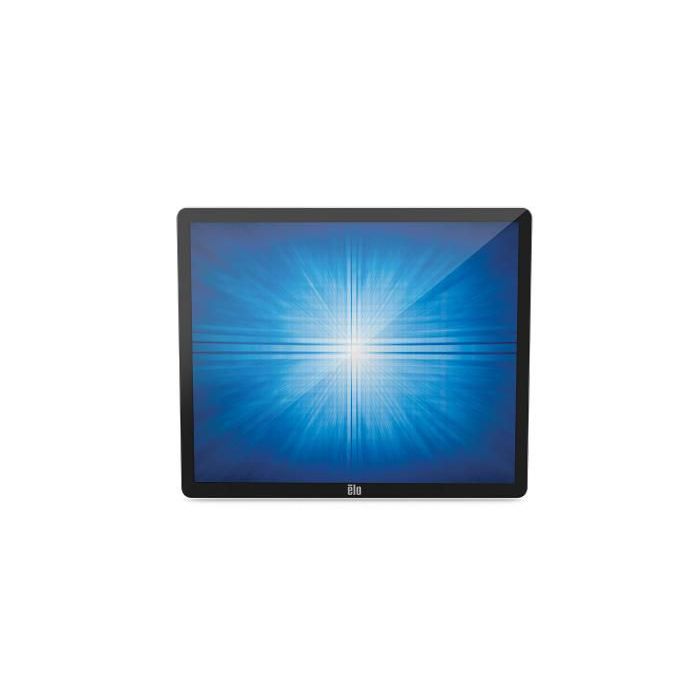

Elo Touch Solutions 1902L, 19", TFT LCD (LED), 1280x1024, 5:4, VGA, HDMI, USB, 100-240VAC, 50/60Hz, 354.6x429.6x41.6 mm
Leverbaar op bestelling
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You.
One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
EU Energy Label EU Energy Label
EU Product Fiche ( Engels ) EU Product Fiche
EU Product Fiche ( Frans )
Specifications
| Battery Size | LR03 |
|---|---|
| Battery Technology | Zinc-Manganese Dioxide (Zn/MnO2) |
| Certification | CUL, IC, CCC, CE, KCC, BSMI, FCC, UL, VCCI, CB, RCM, EAC, CoC, BIS |
| International Protection (IP) code | IPX1 |
| Product colour | Black |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 225 cd/m² |
| Display diagonal | 19 " |
| Display number of colours | 16.78 million colours |
| Display resolution | 1280 x 1024 Pixels |
| Display technology | LED |
| HD type | HD |
| Horizontal scan range | 30 - 82 kHz |
| Native aspect ratio | 5:4 |
| Number of simultaneous touchpoints | 10 |
| Response time | 14 ms |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Vertical scan range | 50 - 75 Hz |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Wall mountable | Yes |
| Operating relative humidity (H-H) | 20 - 80 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Built-in camera | No |
| Built-in microphone | No |
| Display viewable area (HxV) | 374.78 x 299.83 mm |
| Maximum refresh rate | 70 Hz |
| Mean time between failures (MTBF) | 50000 uur |
| Power supply type | AC/DC |
| Cables included | Audio (3.5mm), HDMI, USB, VGA |
| Quick start guide | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| OmniTapps Multitouch compatibility | No |
| DisplayPorts quantity | 0 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Micro-USB ports quantity | 4 |
| Number of upstream ports | 1 |
| USB Touch port | Yes |
| USB upstream port type | USB Type-B |
| VGA (D-Sub) ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 11 kWu |
| Energy efficiency class (SDR) | E |
| Energy efficiency scale | A to G |
| Power consumption (off) | 0,4 W |
| Power consumption (standby) | 0,8 W |
| Power consumption (typical) | 18 W |
| Depth (without stand) | 4,16 cm |
| Height (without stand) | 42,96 cm |
| Weight (without stand) | 4300 g |
| Width (without stand) | 35,46 cm |
| Warranty | 3 years |
| Merk | Elo Touch Solutions |
|---|---|
| Part number (MPN) | E125695 |
| EAN | 843173124070 |
