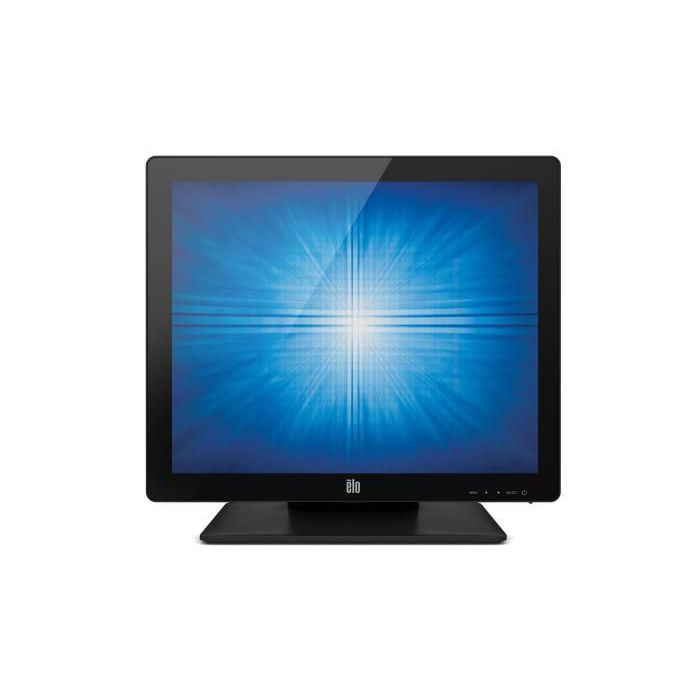

Elo Touch Solutions 15" TFT LCD (LED) Touchscreen, 1024x768, 4:3, 800:1, AccuTouch ZB, RS-232, USB, Black
Leverbaar op bestelling
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
**Integrated touch**
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
**MSR ready**
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
**Flexible mounting.**
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Datasheet ( Engels )
Specifications
| Battery Size | LR03 |
|---|---|
| Battery Technology | Zinc-Manganese Dioxide (Zn/MnO2) |
| Certification | UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE |
| Glass thickness | 4,3 cm |
| Panel mounting interface | 75 x 75 mm |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 240 cd/m² |
| Display diagonal | 15 " |
| Display number of colours | 16.2 million colours |
| Display resolution | 1024 x 768 Pixels |
| Display technology | LED |
| Display viewable area (HxV) | 228 x 304 mm |
| Horizontal scan range | 31.5 - 60 kHz |
| LED backlight | Yes |
| Native aspect ratio | 4:3 |
| Panel type | TFT |
| Response time | 23 ms |
| Supported graphics resolutions | 1024 x 768 (XGA), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Touchscreen | Yes |
| Vertical scan range | 56 - 75 Hz |
| Viewing angle, horizontal | 160 ° |
| Viewing angle, vertical | 150 ° |
| Wall mountable | Yes |
| Operating relative humidity (H-H) | 20 - 80 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Built-in camera | No |
| Built-in microphone | No |
| LED indicators | Yes |
| Placement supported | Horizontal |
| Power supply type | AC |
| Viewable size, horizontal | 22,81 cm |
| Viewable size, vertical | 30,413 cm |
| Voltage tolerance | 5 procent |
| Cables included | AC, USB, VGA |
| Stand included | Yes |
| AMD FreeSync | No |
| Mean time between failures (MTBF) | 50000 uur |
| Number of OSD languages | 8 |
| NVIDIA G-SYNC | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | English, French, German, Japanese, Simplified Chinese, Spanish, Traditional Chinese |
| Touch technology | Single-touch |
| Touchscreen technology | Resistive |
| Touchscreen type | Tabletop |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0,5 W |
| Power consumption (typical) | 10,5 W |
| Compliance certificates | CE, RoHS |
| Sustainability certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Depth (with stand) | 19,7 cm |
| Dimensions (W x D x H) with stand | 358 x 197 x 319 mm |
| Height (with stand) | 31,9 cm |
| Weight (with stand) | 4300 g |
| Weight with stand | 4,3 kg |
| Width (with stand) | 35,8 cm |
| Warranty | 3 years |
| Merk | Elo Touch Solutions |
|---|---|
| Part number (MPN) | E144246 |
| EAN | 834619001154 |
