Elo Touch Solutions 15.6" LED, PCAP (Projected Capacitive)-10 Touch,1366x768,16:9,10 ms, CR 600:1, Mini-VGA, HDMI, Black
Leverbaar op bestelling

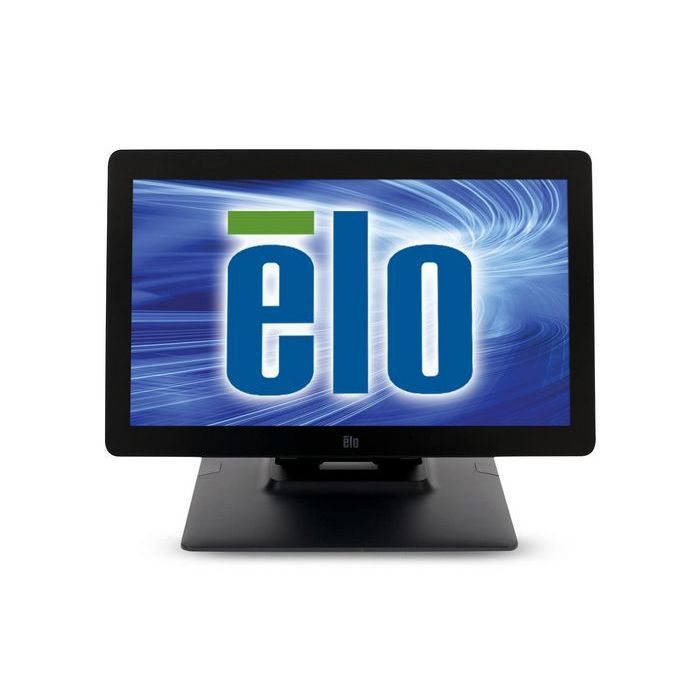

The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale. The sleek wide aspect ratio touchscreen features full HD edge-to-edge glass with display area real estate to showcase engaging, memorable and rewarding content. An HD display model is available for transactional and other applications not requiring 1920x1080 resolution. For environments where space is scarce, the 1502L is an ideal POS terminal screen or stylish interactive information display. Built to withstand the rigors of continuous public use, the 1502L is well suited for high use retail venues. The sleek, thin look pairs well with any modern store environment.
The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns.
Optional color coordinated retail accessories include a Magnetic Stripe Reader (MSR), customer display, barcode scanner and Near Field Communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1502L is offered with IntelliTouch Pro projected capacitive (PCAP) touch technology in a zero-bezel design with 10-touch interaction and an anti-glare surface.
EU Energy Label EU Energy Label
Datasheet ( Engels ) Datasheet
Specifications
| Certification | cUL, IC, Europe CE, Japan VCCI, United States UL, FCC |
|---|---|
| Product colour | Black |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 600:1 |
| Display brightness | 187 cd/m² |
| Display diagonal | 15,6 " |
| Display number of colours | 262144 colours |
| Display resolution | 1366 x 768 Pixels |
| Display technology | LED |
| Display type | LED |
| Horizontal scan range | 31.5 - 60 kHz |
| Response time | 10 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 640 x 480 (VGA), 720 x 576, 800 x 600 (SVGA) |
| Touchscreen | Yes |
| Viewing angle, horizontal | 90 ° |
| Viewing angle, vertical | 65 ° |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100, 75 x 75 |
| Operating relative humidity (H-H) | 20 - 80 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Display viewable area (HxV) | 345.2 x 194.6 mm |
| Energy efficiency class (legacy scale) | A |
| Full HD | No |
| Mean time between failures (MTBF) | 50000 uur |
| Cables included | HDMI, VGA |
| AMD FreeSync | No |
| Built-in camera | No |
| Built-in microphone | No |
| Built-in speaker(s) | Yes |
| Number of OSD languages | 8 |
| Number of speakers | 2 |
| NVIDIA G-SYNC | No |
| On Screen Display (OSD) languages | English, French, German, Italian, Japanese, Simplified Chinese, Spanish, Traditional Chinese |
| RMS rated power | 4 W |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Energy efficiency class | A |
| Power consumption (off) | 0,2 W |
| Power consumption (typical) | 12 W |
| Depth (without stand) | 3,29 cm |
| Height (without stand) | 24,44 cm |
| Weight (with stand) | 3050 g |
| Weight (without stand) | 3000 g |
| Weight with stand | 3,05 kg |
| Width (without stand) | 38,7 cm |
| Warranty | 3 years |
| Merk | Elo Touch Solutions |
|---|---|
| Part number (MPN) | E318746 |
| EAN | 834619009006 |
