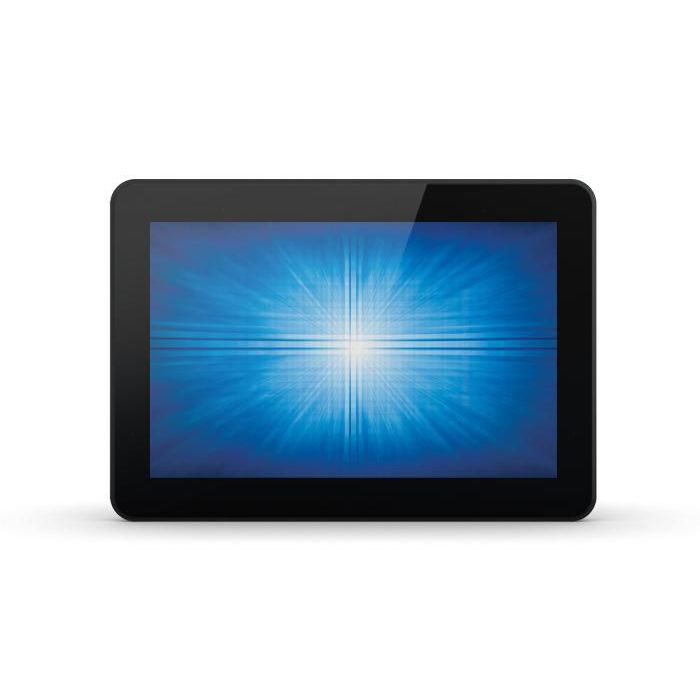

Elo Touch Solutions 10.1", 1280 x 800, 16:10, 25 ms, TFT-LCD, HDMI, DisplayPort, VGA, Black
Leverbaar op bestelling
The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
**Easily integrated.**
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
**Touch ready.**
This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
**Commercial-grade.**
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
**Other features.**
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Display Port and VGA video interfaces
leaflet ( Engels ) Product Brochure
other digital assets ( Engels ) Dimensional Drawing
manual pdf ( Engels ) User manual
other digital assets ( Engels ) Declaration of Conformity
Datasheet ( Engels )
Specifications
| Battery Size | LR03 |
|---|---|
| Battery Technology | Zinc-Manganese Dioxide (Zn/MnO2) |
| Panel mounting interface | 75 x 75 mm |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 350 cd/m² |
| Display diagonal | 10,1 " |
| Display number of colours | 262144 colours |
| Display resolution | 1280 x 800 Pixels |
| Display technology | LCD |
| Panel type | TFT |
| Response time | 25 ms |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 800, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Touchscreen | Yes |
| Viewing angle, horizontal | 170 ° |
| Viewing angle, vertical | 170 ° |
| Wall mountable | Yes |
| Non-operating altitude | 3658 - 12192 m |
| Operating altitude | 0 - 3658 m |
| Operating relative humidity (H-H) | 20 - 80 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Aspect ratio | 16:10 |
| Backlight type | LED |
| Digital horizontal frequency | 30 - 60 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display viewable area (HxV) | 216.96 x 135.6 mm |
| Mean time between failures (MTBF) | 50000 uur |
| Power consumption (PowerSave) | 0,7 W |
| Power supply type | AC/DC |
| AMD FreeSync | No |
| Number of OSD languages | 8 |
| NVIDIA G-SYNC | No |
| On Screen Display (OSD) languages | English, French, German, Italian, Japanese, Simplified Chinese, Spanish, Traditional Chinese |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (off) | 0,5 W |
| Power consumption (typical) | 6,1 W |
| Depth (without stand) | 3,69 cm |
| Height (without stand) | 17,85 cm |
| Weight (without stand) | 1200 g |
| Width (without stand) | 25,58 cm |
| Warranty | 3 years |
| Merk | Elo Touch Solutions |
|---|---|
| Part number (MPN) | E321195 |
| EAN | 815335025778 |
