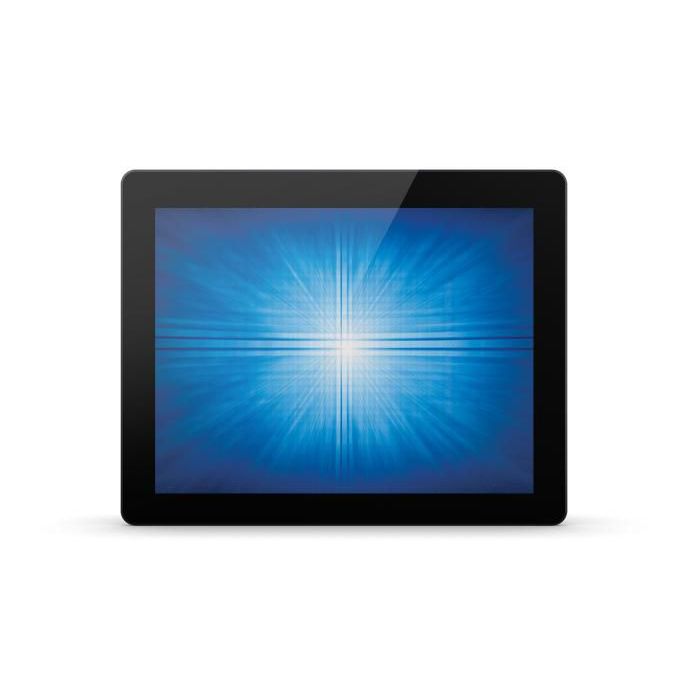

Elo Touch Solutions 1590L Open Frame Touchscreen (Rev B), 15" LCD (LED) 1024x768, 5-Wire Resistive (AccuTouch) Single-Touch, HDMI, VGA, Display Port
Leverbaar op bestelling
The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
**Easily integrated.
** The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
**Touch ready.
** The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
**Commercial-grade.
** The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
EU Energy Label EU Energy Label
Datasheet ( Engels )
Specifications
| Battery Size | LR03 |
|---|---|
| Battery Technology | Zinc-Manganese Dioxide (Zn/MnO2) |
| RoHS compliance | Yes |
| Panel mounting interface | 100 x 100, 75 x 75 |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 240 cd/m² |
| Display diagonal | 15 " |
| Display number of colours | 16.2 million colours |
| Display resolution | 1024 x 768 Pixels |
| Display technology | LCD |
| Horizontal scan range | 30 - 60 kHz |
| LED backlight | Yes |
| Native refresh rate | 60 Hz |
| Response time | 16 ms |
| Touchscreen | Yes |
| Vertical scan range | 50 - 75 Hz |
| Viewing angle, horizontal | 160 ° |
| Viewing angle, vertical | 150 ° |
| Wall mountable | Yes |
| Operating relative humidity (H-H) | 20 - 80 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Aspect ratio | 4:3 |
| Backlight type | LED |
| Built-in camera | No |
| Digital horizontal frequency | 30 - 60 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| HD-Ready | No |
| Mean time between failures (MTBF) | 50000 uur |
| Power supply type | DC |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| On Screen Display (OSD) languages | English, French, German, Italian, Japanese, Simplified Chinese, Spanish, Traditional Chinese |
| Touch technology | Single-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Kiosk |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Number of upstream ports | 1 |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| AC adapter output voltage | 12 V |
| Energy consumption (SDR) per 1000 hours | 15 kWu |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| Power consumption (off) | 0,5 W |
| Power consumption (typical) | 12,5 W |
| Compliance certificates | RoHS |
| Full HD | No |
| Sustainability certificates | RoHS |
| Depth (without stand) | 3,56 cm |
| Height (without stand) | 28,49 cm |
| Weight (without stand) | 2900 g |
| Width (without stand) | 35,8 cm |
| Warranty | 3 years |
| Merk | Elo Touch Solutions |
|---|---|
| Part number (MPN) | E326154 |
| EAN | 815335025785 |
