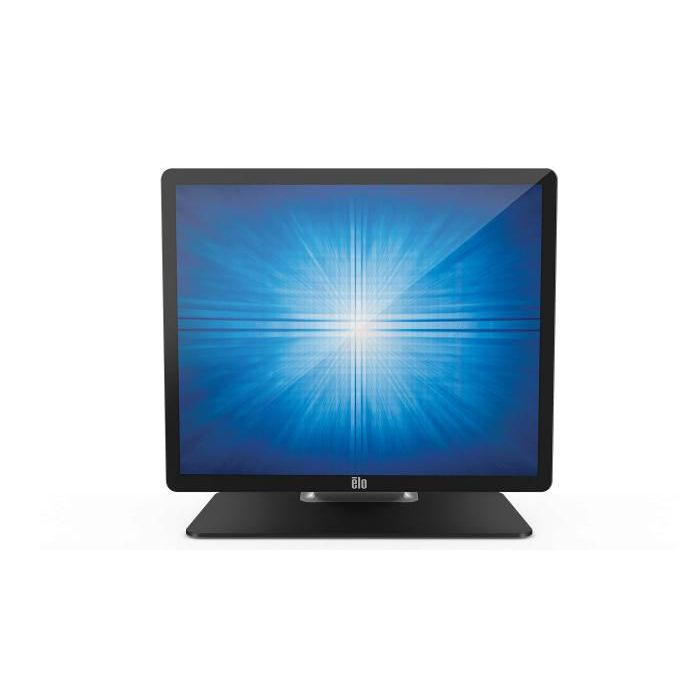

Elo Touch Solutions 19" TouchPro PCAP 10 Touch, 1280 x 1024 px, 5:4, 1000:1, 235 cd/m², 2 x 2 W, VGA, HDMI, USB, IPX1
Leverbaar op bestelling
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
**Brilliant Displays from 19 to 27-inches**
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
**Well-Suited for...**
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
**Privacy Matters**
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.
**One for You.**
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
**Mount with Flexibility**
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
leaflet ( Engels ) Product Brochure
other digital assets ( Engels ) DIMENSIONAL DRAWING
manual pdf ( Engels ) User manual
Specifications
| Battery Size | LR03 |
|---|---|
| Battery Technology | Zinc-Manganese Dioxide (Zn/MnO2) |
| International Protection (IP) code | IPX1 |
| Panel mounting interface | 100 x 100 mm |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 235 cd/m² |
| Display diagonal | 19 " |
| Display number of colours | 16.78 million colours |
| Display resolution | 1280 x 1024 Pixels |
| Display technology | LCD |
| High frequency rate | 60 Hz |
| Horizontal scan range | 30 - 82 kHz |
| LED backlight | Yes |
| Native aspect ratio | 5:4 |
| Response time | 14 ms |
| Touchscreen | Yes |
| Vertical scan range | 50 - 75 Hz |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Operating relative humidity (H-H) | 20 - 80 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Aspect ratio | 5:4 |
| Built-in camera | No |
| Display viewable area (HxV) | 374.78 x 299.83 mm |
| Maximum refresh rate | 60 Hz |
| Mean time between failures (MTBF) | 50000 uur |
| Power supply type | AC/DC |
| Voltage tolerance | 5 procent |
| Cables included | AC, Audio (3.5mm), HDMI, USB, VGA |
| Quick start guide | Yes |
| AMD FreeSync | No |
| Built-in speaker(s) | Yes |
| Number of simultaneous touchpoints | 10 |
| NVIDIA G-SYNC | No |
| On Screen Display (OSD) languages | English, French, German, Italian, Japanese, Korean, Russian, Simplified Chinese, Spanish, Traditional Chinese |
| RMS rated power | 4 W |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| DisplayPorts quantity | 0 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Micro-USB ports quantity | 4 |
| USB 2.0 Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0,4 W |
| Power consumption (standby) | 0,8 W |
| Power consumption (typical) | 18 W |
| Depth (with stand) | 19,34 cm |
| Dimensions (W x D x H) with stand | 429.6 x 193.4 x 397.7 mm |
| Height (with stand) | 39,77 cm |
| Weight (with stand) | 6300 g |
| Weight (without stand) | 4300 g |
| Weight with stand | 6,3 kg |
| Width (with stand) | 42,96 cm |
| Warranty | 3 years |
| Merk | Elo Touch Solutions |
|---|---|
| Part number (MPN) | E351388 |
| EAN | 815335026393 |
