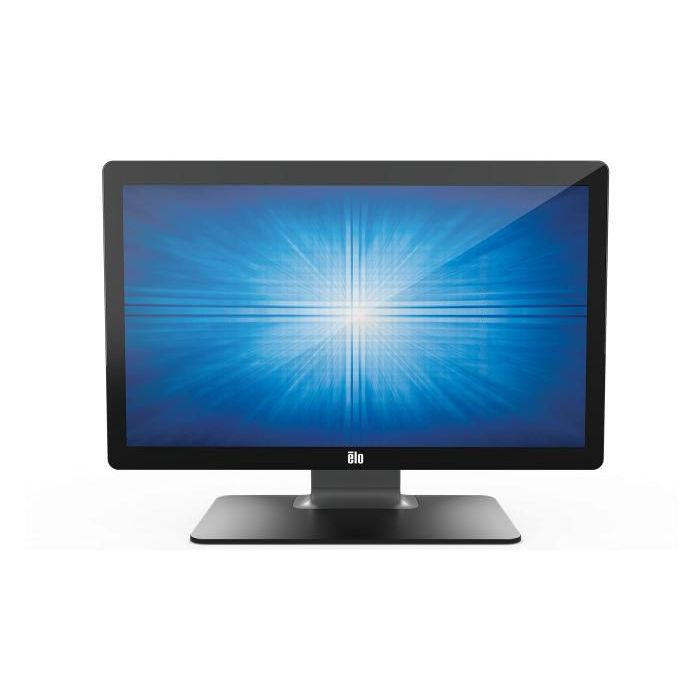

Elo Touch Solutions 2702L, 27" Touchscreen Monitor, 1920 x 1080 px, 300 cd/m², 14 ms, 178°/178°, 16:9, HDMI, 28W, VESA
Leverbaar op bestelling
The Elo 2702L 27-inch touchscreen monitor delivers a professional-grade interactive solution with Elo’s industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Elo 2702L 27-inch touchscreen monitor delivers a professional-grade interactive solution with Elo’s industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. Backed by a three-year warranty, the feature rich touchscreen monitor is equipped with dual built-in speakers and VGA and HDMI video connectors. With a compact form factor, clean design aesthetic and flexible mounting options, these touchscreens are well-suited for POS, interactive digital signage and self-service.
Designed for commercial use, the new Elo touchscreen monitor makes business operations easy delivering energy efficiency and versatile accessories. The 2702L accessories include MSR, barcode scanner, fingerprint reader, NFC, customer facing display, handles and privacy screens. Third party peripherals can be easily added as well with the integrated USB 2.0 hub.
leaflet ( Engels ) Product Brochure
other digital assets ( Engels ) DIMENSIONAL DRAWING
manual pdf ( Engels ) User manual
Specifications
| Battery Size | LR03 |
|---|---|
| Battery Technology | Zinc-Manganese Dioxide (Zn/MnO2) |
| International Protection (IP) code | IPX1 |
| Panel mounting interface | 100 x 100 mm |
| Product colour | Black, Silver |
| Screen shape | Flat |
| VESA mounting | Yes |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 300 cd/m² |
| Display diagonal | 27 " |
| Display number of colours | 16.78 million colours |
| Display resolution | 1920 x 1080 Pixels |
| Display technology | LCD |
| HD type | Full HD |
| High frequency rate | 60 Hz |
| Panel type | TFT |
| Response time | 14 ms |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Touchscreen | Yes |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Wall mountable | Yes |
| Operating relative humidity (H-H) | 20 - 80 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Aspect ratio | 16:9 |
| Built-in camera | No |
| Built-in microphone | No |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display viewable area (HxV) | 597.88 x 336.31 mm |
| Maximum refresh rate | 60 Hz |
| Mean time between failures (MTBF) | 50000 uur |
| AC adapter included | Yes |
| Cables included | AC, Audio (3.5mm), HDMI, USB, VGA |
| Quick start guide | Yes |
| AMD FreeSync | No |
| Built-in speaker(s) | Yes |
| Number of OSD languages | 10 |
| Number of simultaneous touchpoints | 10 |
| NVIDIA G-SYNC | No |
| OmniTapps Multitouch compatibility | No |
| On Screen Display (OSD) languages | English, French, German, Italian, Japanese, Korean, Russian, Simplified Chinese, Spanish, Traditional Chinese |
| RMS rated power | 4 W |
| Touch technology | Multi-touch |
| Touchscreen technology | Capacitive |
| Touchscreen type | Tabletop |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Micro-USB ports quantity | 4 |
| Number of upstream ports | 1 |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Energy Star certified | No |
| Power consumption (off) | 0,38 W |
| Power consumption (standby) | 0,45 W |
| Power consumption (typical) | 28 W |
| Full HD | Yes |
| Depth (with stand) | 23,3 cm |
| Dimensions (W x D x H) with stand | 647.6 x 233 x 450.9 mm |
| Height (with stand) | 45,09 cm |
| Weight (with stand) | 10500 g |
| Weight (without stand) | 7240 g |
| Weight with stand | 10,5 kg |
| Width (with stand) | 64,76 cm |
| Warranty | 3 years |
| Merk | Elo Touch Solutions |
|---|---|
| Part number (MPN) | E351997 |
| EAN | 815335026423 |
