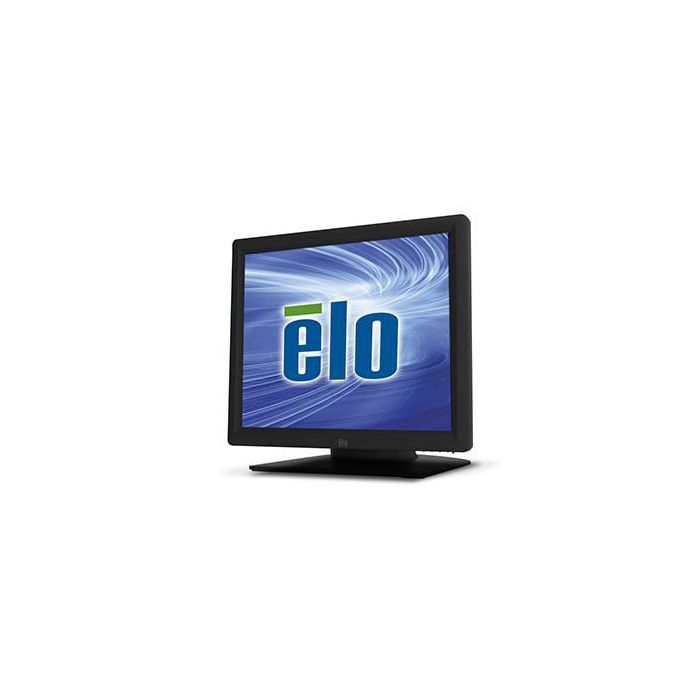

Elo Touch Solutions 15.0" TFT, 1024 x 768px, 16 ms, 700:1, 200 cd/m², black
Leverbaar op bestelling
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.
Datasheet ( Engels )
Specifications
| Battery Size | LR03 |
|---|---|
| Battery Technology | Zinc-Manganese Dioxide (Zn/MnO2) |
| Glass thickness | 4,3 cm |
| Panel mounting interface | 75 x 75 mm |
| Product colour | Black |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 200 cd/m² |
| Display diagonal | 15 " |
| Display number of colours | 16.2 million colours |
| Display resolution | 1024 x 768 Pixels |
| Display technology | LCD |
| Horizontal scan range | 31.5 - 60 kHz |
| LED backlight | Yes |
| Native aspect ratio | 4:3 |
| Native refresh rate | 60 Hz |
| Response time | 8 ms |
| Supported graphics resolutions | 1024 x 768 (XGA), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA) |
| Touchscreen | Yes |
| Vertical scan range | 56 - 75 Hz |
| Viewing angle, horizontal | 160 ° |
| Viewing angle, vertical | 150 ° |
| Operating relative humidity (H-H) | 20 - 80 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Aspect ratio | 4:3 |
| Display viewable area (HxV) | 304 x 228 mm |
| Mean time between failures (MTBF) | 50000 uur |
| Power supply type | AC/DC |
| Voltage tolerance | 5 procent |
| AMD FreeSync | No |
| Number of OSD languages | 8 |
| NVIDIA G-SYNC | No |
| On Screen Display (OSD) languages | English, French, German, Italian, Japanese, Simplified Chinese, Spanish, Traditional Chinese |
| Touch technology | Single-touch |
| Touchscreen type | Tabletop |
| Number of upstream ports | 1 |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 12 W |
| Depth (with stand) | 19,7 cm |
| Dimensions (W x D x H) with stand | 358 x 197 x 319 mm |
| Height (with stand) | 31,9 cm |
| Weight (with stand) | 4300 g |
| Weight with stand | 4,3 kg |
| Width (with stand) | 35,8 cm |
| Warranty | 3 years |
| Merk | Elo Touch Solutions |
|---|---|
| Part number (MPN) | E523163 |
| EAN | 834619001222 |
