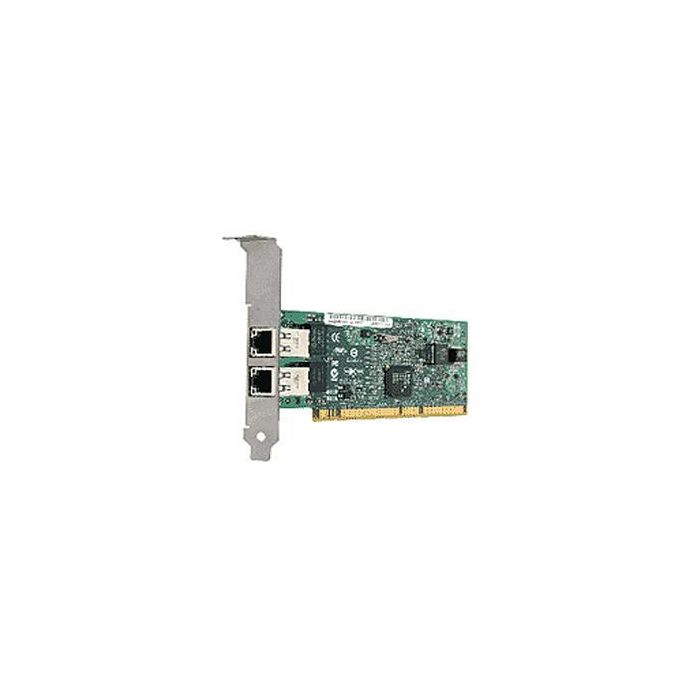

Hewlett Packard Enterprise NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
Leverbaar op bestelling
The NC7170 features two ports on a single adapter, allowing customers to save valuable I/O slots for other purposes. Each port supports a PCI-X 64-bit/133MHz interface, which is also compatible with traditional PCI slots.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The NC7170 features two ports on a single adapter, allowing customers to save valuable I/O slots for other purposes. Each port supports a PCI-X 64-bit/133MHz interface, which is also compatible with traditional PCI slots. The 10/100/1000Mbps capability enables the NC7170 to be used in Ethernet or Fast Ethernet legacy wiring plants, as well as for Gigabit environments. The high speed and increased data path, combined with the 128KB of onboard memory, make the NC7170 idea for ProLiant servers requiring the maximum in bandwidth with maximum port density.
The NC7170 is available in two versions: an Ethernet network adapter packaged with brackets that fit into a standard, full length ProLiant server slot (NC7170, SKU# 313881-B21), and a low profile Ethernet network adapter packaged with brackets that fit into low profile (half height) slots available on selected ProLiant servers (NC7170 LP, SKU# 383738-B21). Except for the bracket size, the two versions of this dual port Ethernet adapter have exactly the same features and functionality.
Specifications
| Certification | FCC Class B certified, UL, CISPR 22 Class A, VCCI Class B ITE, BSMI CNS 13438 Class A, cUL, EN 60950, EN55022, ICES-003, EN55024 |
|---|---|
| Internal | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Internal memory | 0,128 MB |
| Management protocols | SNMP |
| Supported protocols | TCP/IP |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI-X |
| Interface | Ethernet |
| Compatible operating systems | Microsoft DOS, SCO OpenServer 5, Novell NetWare 4.x, Microsoft Windows 2000, Novell NetWare 5.x, Red Hat Linux, SuSe Linux, Novell NetWare 6.x, Caldera OpenUnix 8, Microsoft Windows Server 2003 |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | 313881-B21-RFB |
| EAN | 5705965749210 |
