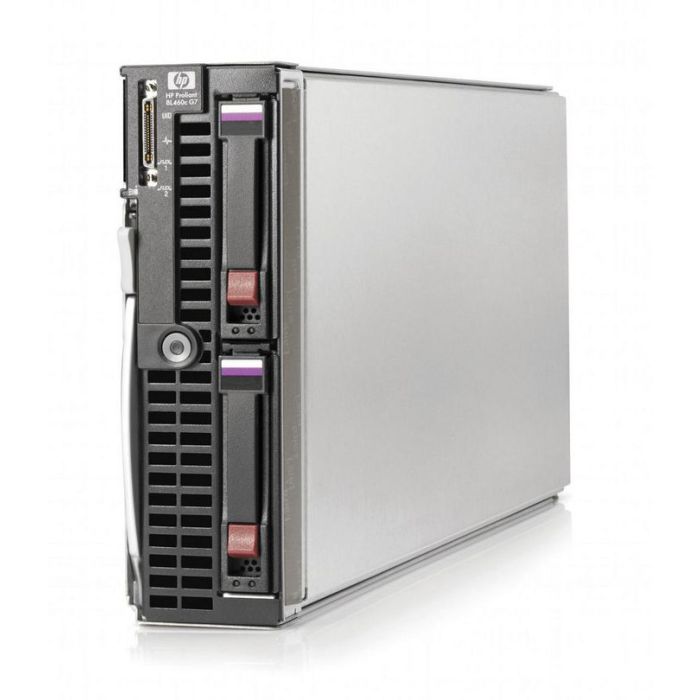

Hewlett Packard Enterprise Intel Xeon E5620 (2.40 Ghz, 12Mb L3), Intel 5520, 6Gb RAM, Matrox G200, 3xLAN, Blade
Leverbaar op bestelling
As the world's most popular blade, the HP ProLiant BL460c G7 Server offers the ideal balance of performance, scalability, and expandability to make it the standard for data center computing.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
As the world's most popular blade, the HP ProLiant BL460c G7 Server offers the ideal balance of performance, scalability, and expandability to make it the standard for data center computing. Packing two processors, two hot plug hard drives, up to 384 GB of memory, and a dual-port FlexFabric adapter into a half-height blade, the BL460c gives IT managers a single platform that can handle any business applications.
**Dense Compute Power**
- Up to two (2) two-, four-,or six-core Intel® Xeon® 5500 or 5600 series processors
- 12 DIMM slots supporting up to 384 GB of DDR-3 memory with Advanced ECC
- HP Smart Array P410i controller for hardware RAID 0 and 1, with optional cache modules for increased performance
- Up to two (2) hot plug small form factor (SFF) SAS, SATA, or SSD drives
- Internal USB and SD card slots enable simple, flexible hypervisor deployments
**Integrated HP Virtual Connect FlexFabric Support**
- Embedded dual-port 10 Gb FlexFabric adapter delivers high bandwidth for network intensive applications
- Simplify management and lower infrastructure costs by converging LAN and SAN traffic over the same flexible connection
- Up to eight (8) connections to network and storage without the need for add-in mezzanine cards
- Divide and fine-tune network and storage bandwidth to match application requirements
**Industry-leading Infrastructure Management**
- Save time and conserve valuable IT resources by simplifying remote management with HP Integrated Lights-Out 3 (iLO 3)
- Deploy servers quickly, proactively manage virtual or physical server health, and optimize power consumption with HP Insight Control
- Rapidly provision, continuously analyze, and confidently optimize your converged server infrastructure with HP Insight Dynamics
Specifications
| Chassis type | Blade |
|---|---|
| Optical drive type | N |
| Product series | ProLiant BL |
| PCI Express x8 slots | 2 |
| Images Type Map | <lt/>div<gt/><lt/>img src="https://ark.intel.com/inc/images/diagrams/diagram-19.gif" title="Block Diagram" /<gt/><lt/>/div<gt/> |
| Internal memory | 6 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 384 GB |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 3 x 2 GB |
| Memory slots | 12 |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Non-operating altitude | 0 - 9144 m |
| Operating altitude | 0 - 3050 m |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -30 - 60 °C |
| Disk array controller | P410i |
| Graphics card | G200 |
| Graphics card family | Matrox |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Number of power supply units | 0 |
| Bus type | QPI |
| Conflict-Free processor | No |
| CPU multiplier (bus/core ratio) | 18 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 25,6 GB/s |
| Memory channels supported by processor | Triple |
| Memory clock speeds supported by processor | 1066, 800 |
| Memory types supported by processor | DDR3 800/1066 |
| Motherboard chipset | Intel® 5520 |
| Number of processors installed | 1 |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 Bit |
| Processor boost frequency | 2,66 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor code | SLBV4 |
| Processor codename | Westmere EP |
| Processor cores | 4 |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor frequency | 2,4 GHz |
| Processor lithography | 32 nm |
| Processor manufacturer | Intel |
| Processor model | E5620 |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 X 45 mm |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 8 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| System bus rate | 5,86 GT/s |
| Tcase | 77,6 °C |
| Thermal Design Power (TDP) | 80 W |
| Thermal Monitoring Technologies | No |
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel Fast Memory Access | No |
| Intel FDI Technology | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Insider™ | No |
| Intel® InTru™ 3D Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® vPro™ Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 47925 |
| Operating system installed | No |
| Maximum storage capacity | 2 TB |
| Number of HDDs installed | 0 |
| Number of HDDs supported | 2 |
| RAID levels | 0, 1 |
| RAID support | Yes |
| Total storage capacity | 0 GB |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | 603588-B21-RFB |
| EAN | 5712505152362 |
