Hewlett Packard Enterprise 2 Ports, SFP+, PCIe 2.0 x8, 10Gb/s, 256MB, 12W
Op voorraad: 2 stuks

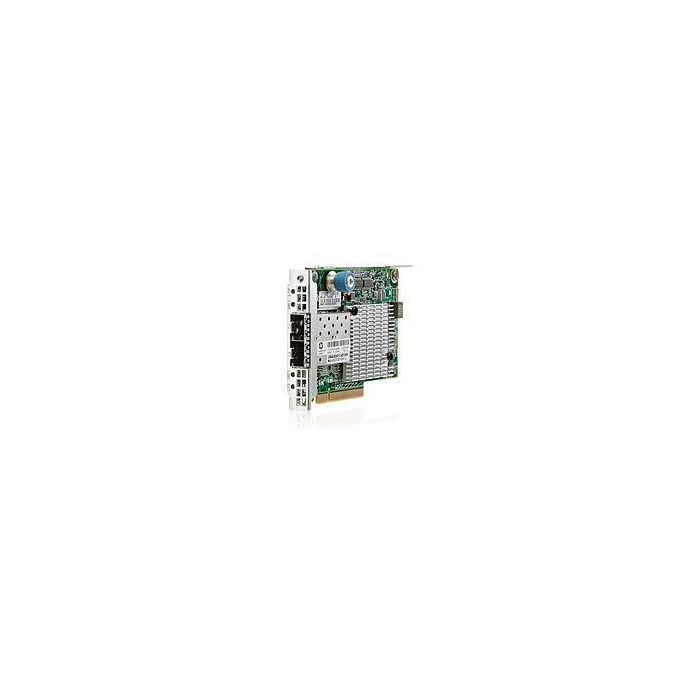

The HP Ethernet 10Gb 2-port 530FLR-SFP+ adapter features the next generation, single chip 10GbE solution from Broadcom in a FlexibleLOM form factor designed for select HP ProLiant Gen8 rack servers.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The HP Ethernet 10Gb 2-port 530FLR-SFP+ adapter features the next generation, single chip 10GbE solution from Broadcom in a FlexibleLOM form factor designed for select HP ProLiant Gen8 rack servers. The HP 530FLR dual-port design with a total aggregate throughput of 20Gb meets the needs for customers desiring high bandwidth. The HP 530FLR supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors Technology enhances server performance while reducing energy use and expense.
**Single-chip, dual-port 10Gb Ethernet Flexible LOM designed for select HP ProLiant Gen8 rack servers.**
20 Gbps full duplex Ethernet transfer rate per port (40 Gbps aggregate) to provide the network performance needed to improve response times and alleviate bottlenecks for the most demanding workloads in next generation data centers. Comprehensive stateless offloads to optimize host efficiency and VM density by leaving host CPU available for other duties. Virtualization support for VMware NetQueue and Microsoft VMQ to meet the performance demands of consolidated virtual workloads. Support for MSI/MSI-X to provide performance benefits for multi-core servers by load balancing interrupts between CPUs/cores. Stateful hardware offload for TCP/IP: TCP Offload Engine (TOE).
Specifications
| Certification | BSMI, CNS13438 (2006) Class EN55022:2006+A12007 class A, CE, EN 60590, EN55022:2006 + A1:2007 Class A, EN55024:1998+A1:2011+A2, EN61000-3-2:2006, EN61000-3-3:2008, FCC Part 15 Class A, ICES=--3, Issue 4, KN22 Class A, KN24, UL/cUL, VCCI V3 (2010.04) Class A |
|---|---|
| Chipset | Broadcom BCM57810S |
| Internal | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Ethernet LAN | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 40000 Mbit/s |
| Networking standards | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x |
| Wi-Fi | No |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 0 - 55 °C |
| Connector(s) | SFP+ |
| Data transfer rate | 10 Gbit/s |
| Internal memory | 256 MB |
| Networking features | 10G |
| Ports quantity | 2 |
| Wireless connection | No |
| Compatible memory cards | Not supported |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Power consumption (typical) | 12 W |
| Compatible operating systems | Red Hat Enterprise Linux 5.x/6.0, SLES 10/11, Solaris 10, VMware 4.0/4.1, Windows Server 2008, Server 2008R2, HPC Server 2008 32/64-bit, Windows Server Hyper-V |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | 647581-B21-RFB |
| EAN | 5711783517320 |
