Hewlett Packard Enterprise 2 Ports, PCIe, 10Gb/s, FC, BE3, 128MB
Op voorraad: 2 stuks

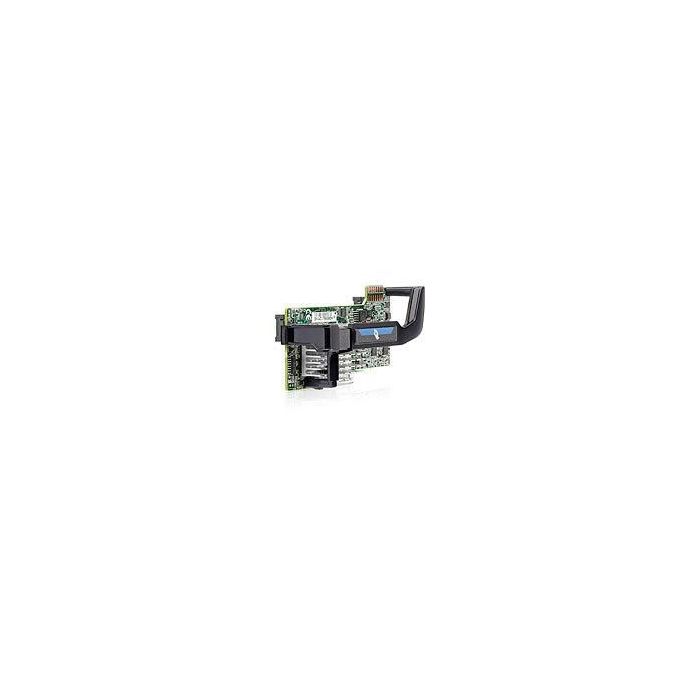

The HP FlexFabric 10Gb 2-port 554FLB adapter combines the functionality of Ethernet and Fibre Channel (FC) in a Flexible LOM form factor designed for the HP BladeSystem c-Class Gen8 platform.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The HP FlexFabric 10Gb 2-port 554FLB adapter combines the functionality of Ethernet and Fibre Channel (FC) in a Flexible LOM form factor designed for the HP BladeSystem c-Class Gen8 platform. It optimizes network and storage traffic with hardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE), and Fibre Channel.
The HP 554FLB supports Virtual Connect Flex-10, increasing bandwidth for virtualized servers.
One platform for network and storage connection. Multiple protocol offloads for optimum server efficiency. Industry leading performance per watt for power savings. Easy to deploy and manage. Optimized for convergence – one network lowers capital and operating expenses.
Specifications
| Certification | ACA, AS/NZS3548/EN55022:1998, EN55024:1998, EN55022:1998 (CISPR 22), EN55024:1998, IEC60950:1999 (EN60950:2000), FCC (CFR 47 part 15), UL 60950, ICES-003/ CSA60950, MIC (RRL), EMC, VCCI |
|---|---|
| Chipset | Emulex BE3 |
| Internal | Yes |
| Product colour | Green, Grey |
| RoHS compliance | Yes |
| Bandwidth | 40 Gbit/s |
| Ethernet LAN | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae |
| Wi-Fi | No |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 0 - 55 °C |
| Data transfer rate | 10 Gbit/s |
| Flow control support | Yes |
| Internal memory | 128 MB |
| Wireless connection | No |
| Compatible memory cards | Not supported |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Power consumption (typical) | 10 W |
| USB powered | No |
| Compatible operating systems | Red Hat Enterprise Linux (x86 / EM64T/AMD64) 5.7, 6.1, Solaris 10, SUSE Linux Enterprise Server (x86 / EM64T/AMD64) 10 SP4, 11 SP1, Windows Hyper-V, R2 w/SP1, Windows Server 2008 SP2, R2 w/SP1 (x86 / x64) |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | 647586-B21-RFB |
| EAN | 5712505302736 |
