Hewlett Packard Enterprise 4 x RJ-45, PCIe, 1Gbps, 100m Distance, 4.3W
Op voorraad: 10 stuks

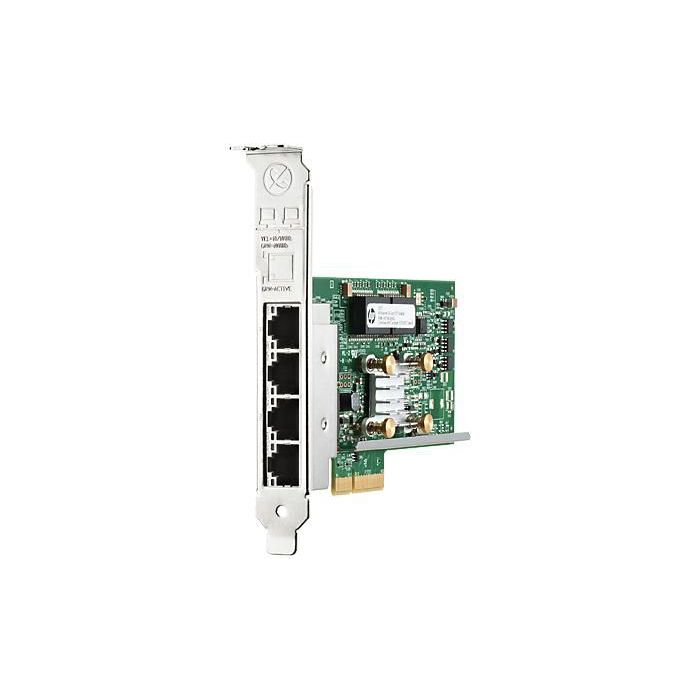

The HP Ethernet 1Gb 4-Port 331T Adapter features the next generation of Ethernet integration, offering a single chip solution that reduces power requirements and optimizes I/O slot utilization. It delivers full line-rate performance across all ports with low power consumption.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The HP Ethernet 1Gb 4-Port 331T Adapter features the next generation of Ethernet integration, offering a single chip solution that reduces power requirements and optimizes I/O slot utilization. It delivers full line-rate performance across all ports with low power consumption. The HP 331T is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 4Gb meets the needs of customers desiring high bandwidth. The HP 331T supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
The HP 331T is designed for maximum throughput and high port density.
An aggregate, full duplex transfer rate of 8 Gbps per adapter delivers outstanding network performance that improves response time and removes bottlenecks. Comprehensive stateless offloads optimize host efficiency and VM density by leaving host CPU available for other duties. Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of consolidated virtual workloads. Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores. Support for Energy Efficient Ethernet (EEE) reduces operating expenses.
leaflet ( Engels ) Product Brochure
Specifications
| Certification | CE, EN 60590, EN55022:2006 + A1:2007 Class B, EN55022:2006+A12007 class B, EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008, FCC Part 15 Class B, ICES=--3, Issue 4, KN22 ClassB, KN24, UL/cUL, VCCI V3 (2010.04) Class B |
|---|---|
| Chipset | Broadcom BCM5719 |
| Internal | Yes |
| Product colour | Green, Grey |
| Bandwidth | 8 Gbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Maximum operating distance | 100 m |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Wi-Fi | No |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -65 - 85 °C |
| Cable type | Cat5 |
| Connector(s) | RJ-45 |
| Data transfer rate | 1 Gbit/s |
| Compatible memory cards | Not supported |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 4 |
| Host interface | PCI Express |
| Interface | Ethernet |
| Parallel ports quantity | 0 |
| Power consumption (typical) | 4,3 W |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | 647594-B21-RFB |
| EAN | 1234561312114 |
