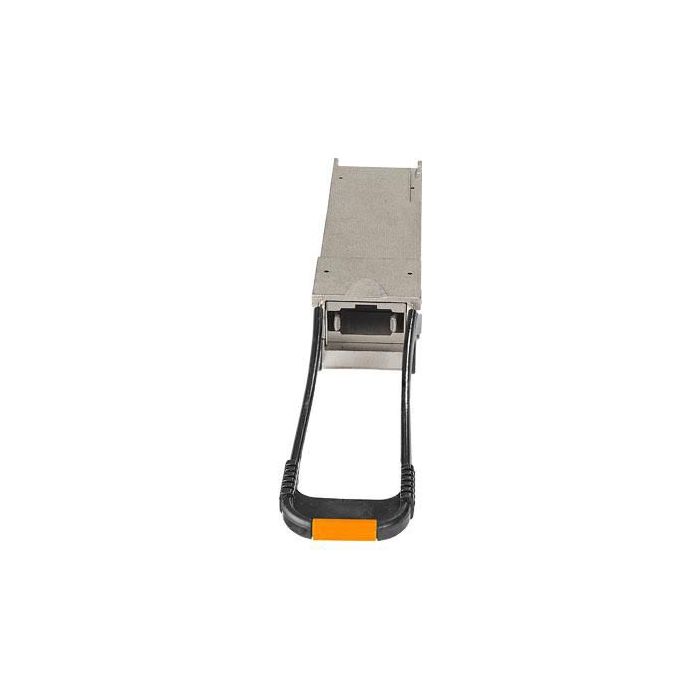

Hewlett Packard Enterprise 40GB, QSFP+, MPO, SR4, 850nm, 300m
Leverbaar op bestelling
Do you need high-performance QSFP+ transceivers for your BladeSystem? The HP BladeSystem c-Class QSFP+ Transceivers deliver a full-duplex optical module with four independent transmit and receive channels supporting data rates up to 4x10 Gb/s for high-density applications and improving performance.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Do you need high-performance QSFP+ transceivers for your BladeSystem? The HP BladeSystem c-Class QSFP+ Transceivers deliver a full-duplex optical module with four independent transmit and receive channels supporting data rates up to 4x10 Gb/s for high-density applications and improving performance.
Supports 4 lanes x 10.3 Gb/s.
Supports link distances up to 100m on OM3 MMF and 150m on OM4 MMF for SR4 and up to 10 km on SMF for LR4.
Less than 1.5 W maximum power dissipation for SR4/CSR4 and less than 3.5 W for LR4.
Can be used either for 40GbE or for aggregating 4x 10GbE links.
MPO connector (SR4) or LC connector (LR4).
Specifications
| Compatible products | BladeSystem c-Class |
|---|---|
| Quantity per pack | 1 stuk(s) |
| Number of products included | 1 stuk(s) |
| Duplex system | Full |
| Fiber optic connector | MPO |
| Fiber ports quantity | 1 |
| Interface type | QSFP+ |
| Maximum data transfer rate | 40000 Mbit/s |
| Maximum transfer distance | 300 m |
| Networking standards | IEEE 802.3ba |
| SFP transceiver standard | SR4 |
| Wavelength | 850 nm |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | 747698-B21-RFB |
