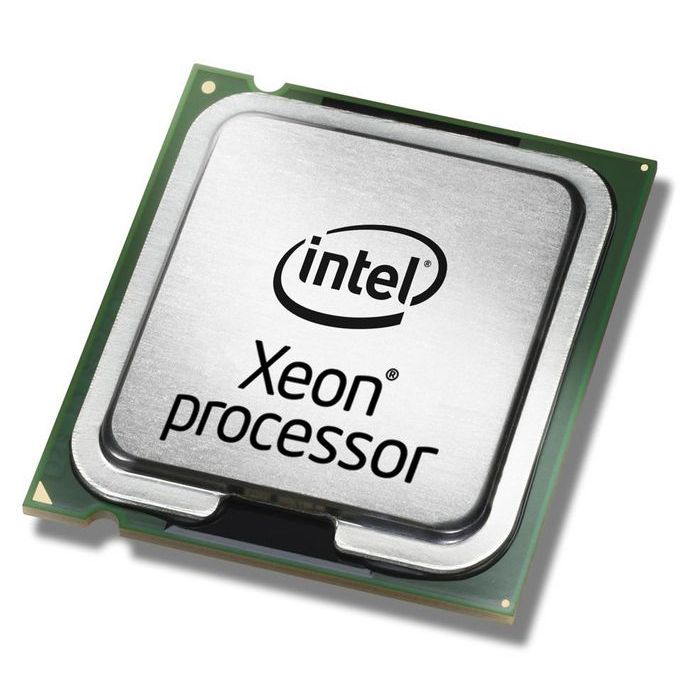

Hewlett Packard Enterprise Intel Xeon E5-2697 v4, 35M Cache, 2.4 GHz, 9.6 GT/s QPI
Leverbaar op bestelling
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Specifications
| CPU configuration (max) | 2 |
|---|---|
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | Yes |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 1,5 TB |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600, 1866, 2133, 2400 |
| Memory types supported by processor | DDR4-SDRAM |
| Tcase | 86 °C |
| Bus type | QPI |
| Component for | Server/workstation |
| Memory bandwidth supported by processor (max) | 76,8 GB/s |
| Number of QPI links | 2 |
| Processor base frequency | 2,4 GHz |
| Processor boost frequency | 3,3 GHz |
| Processor cache | 35 MB |
| Processor cache type | Smart Cache |
| Processor cores | 14 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor frequency | 2,4 GHz |
| Processor lithography | 14 nm |
| Processor model | E5-2697V4 |
| Processor operating modes | 64-bit |
| Processor socket | LGA 2011-v3 |
| Processor threads | 28 |
| System bus rate | 9,6 GT/s |
| Thermal Design Power (TDP) | 120 W |
| Conflict-Free processor | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® vPro™ Technology | Yes |
| Warranty | 3 years |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | 835616-001 |
