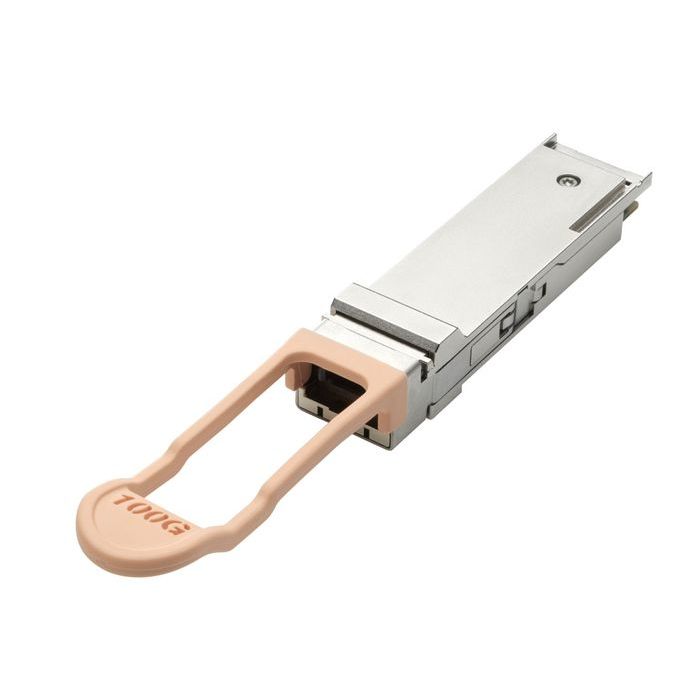

Hewlett Packard Enterprise 100Gb QSFP28 MPO SR4 100m Transceiver
Leverbaar op bestelling
What if you could deploy 100 Gb transceiver connections with an overall reduction of cost per bit? The HPE 100Gb QSFP28 Transceiver is designed to meet the increasing demand of growing bandwidth in the data center.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
What if you could deploy 100 Gb transceiver connections with an overall reduction of cost per bit? The HPE 100Gb QSFP28 Transceiver is designed to meet the increasing demand of growing bandwidth in the data center. The 100 Gb performance allows a reduction of the port density and number of hardware components required to achieve this higher speed. With reduction of cost per bit, The HPE 100Gb QSFP28 Transceiver can significantly reduce Capex and Opex spending on interconnect connections. When the fiber optic cable is attached via a standard MPO connector, up to 100m connection can be conducted via multi-mode fibers.
**Features**
- The HPE 100Gb QSFP28 MPO SR4 100m Transceiver has four optical lanes in each direction, allowing each to operate at 25 Gb.
- MPO connector for plugging in multi-mode fiber cables.
- Maximum link length of 70 m on OM3 and 100 m on OM4 multimode fiber at 100 Gb/s.
- Bit-error Rate (BER) lower than 10-15.
- 3.3 V power supply.
other digital assets ( Engels ) QuickSpecs
leaflet ( Engels ) Product Brochure
leaflet ( Frans )
Specifications
| Connector 1 | MPO |
|---|---|
| Connector 2 | MPO |
| Data transfer rate | 100 Gbit/s |
| Wavelengths supported | 850 nm |
| Operating relative humidity (H-H) | 0 - 85 procent |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight (imperial) | 0,08 lbs |
| Fiber optic connector | MPO |
| Interface type | QSFP28 |
| Maximum data transfer rate | 100000 Mbit/s |
| Maximum transfer distance | 100 m |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR4 |
| SFP transceiver type | Fiber optic |
| Wavelength | 850 nm |
| Power consumption (typical) | 3,5 W |
| Fiber mode structure | Multi-mode |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | 845966-B21 |
| EAN | 0190017017907 |
