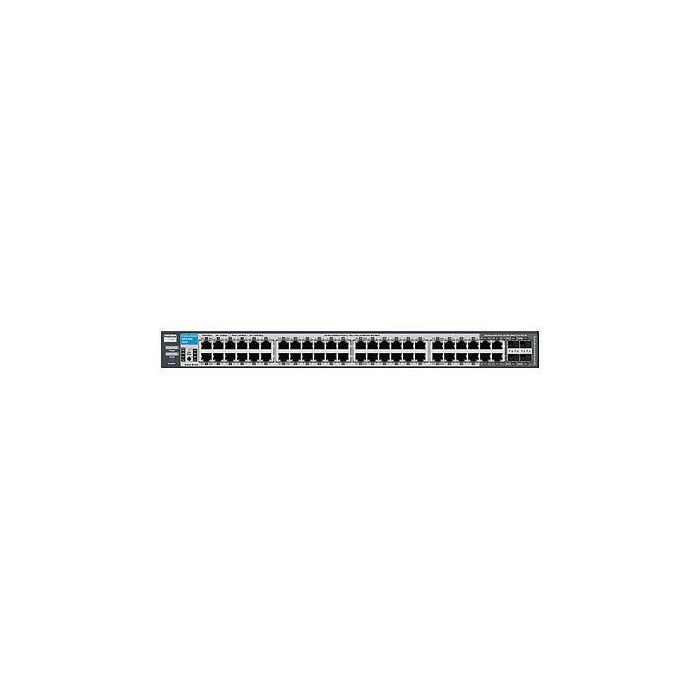

Hewlett Packard Enterprise ProCurve 2900-48G 44 x10/100/1000, 2x CX4 10-GbE, 2 open 10-GbE X2, 4 dual-personality ports
Leverbaar op bestelling
The ProCurve 2900 Switch series consists of two switches: the ProCurve Switch 2900-24G with 24 10/100/1000 ports and the ProCurve Switch 2900-48G with 48 10/100/1000 ports. Both have 4 dual-personality ports for 10/100/1000 or mini-GBIC connectivity.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The ProCurve 2900 Switch series consists of two switches: the ProCurve Switch 2900-24G with 24 10/100/1000 ports and the ProCurve Switch 2900-48G with 48 10/100/1000 ports. Both have 4 dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, by including four integrated 10-Gigabit Ethernet (two CX4 ports and two X2 slots), the 2900 series offers the most flexible and easy-to-deploy multiple 10-Gigabit stacking and uplinks in its class. Together with IP static & RIP routing, robust security and management features, free lifetime warranty, and free software updates, the 2900 series is a cost-effective, future-proof solution for customers who are building high-performance networks.
Communications:
RFC 783 TFTP; RFC 951 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; RFC 2453 RIPv2; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED); RFC 2474 DiffServ Precedence; RFC 2598 DiffServ Expedited Forwarding (EF); RFC 2597 DiffServ Assured Forwarding (AF); RFC 1492 TACACS+; RFC 2138 RADIUS; RFC 2866 RADIUS accounting; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLAN tagging; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 1058 RIP; RFC 1724 RIPv2 MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); XRMON; sFlow; RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 3046 DHCP Relay Agent Information Option
Specifications
| MAC address table | 2000 entries |
|---|---|
| Maximum data transfer rate | 10 Gbit/s |
| Switching capacity | 148 Gbit/s |
| Electromagnetic compatibility | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A |
| Safety | CSA 22.2 No. 60950; UL 60950; IEC60950; EN60950 |
| Stackable | No |
| Switch type | Managed |
| Heat dissipation | 683 BTU/h |
| Operating relative humidity (H-H) | 15 - 95 procent |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage relative humidity (H-H) | 15 - 90 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| Dimensions (WxDxH) | 430 x 443 x 44 mm |
| Electromagnetic emissions | FCC Class A; EN55022/CISPR-22 Class A; VCCI Class A |
| Electromagnetic immunity | EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3 |
| Input frequency | 50/60 Hz |
| Input voltage | 100-127 / 200-240 V |
| Latency | 1000 Mb <lt/>3.7 μs (FIFO 64); 10 Gbps <lt/>2.1 μs (FIFO 64) |
| Management platform | HP ProCurve Manager Plus; HP ProCurve Manager (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C) |
| Memory and processor | Processor: Freescale PowerPC 8540 @ 667 MHz, 4 MB flash, packet buffer size: 22.5 MB |
| Operating altitude (imperial) | up to 15000 ft. |
| Power requirements | The switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz |
| Switch fabric speed | 153.6 Gbps |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Console port | RS-232 |
| Input current | 2 - 4 A |
| Power consumption (typical) | 200 W |
| Power over Ethernet (PoE) | No |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | J9050A-RFB |
| EAN | 5711783316404 |
