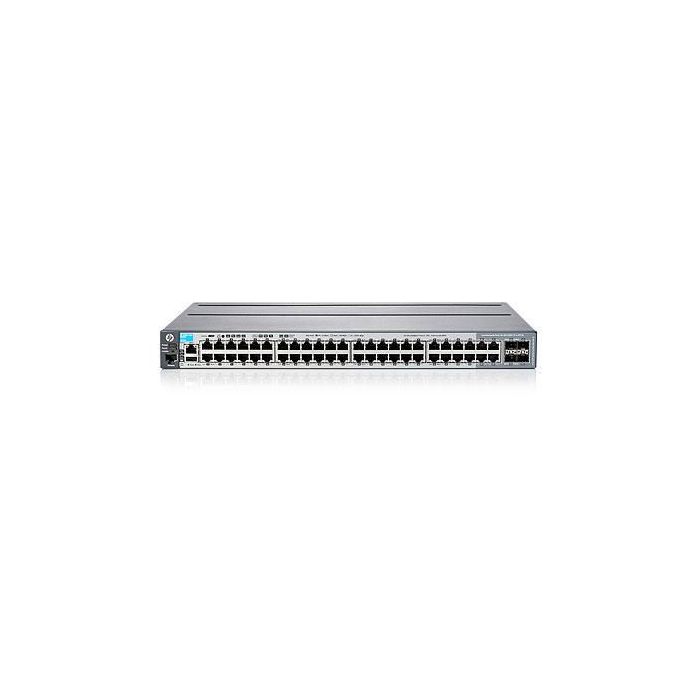

Hewlett Packard Enterprise HP 2920-48G Switch
Op voorraad: 1 stuks
The HP 2920 Switch Series consists of five switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ and 2920-48G 740W PoE+ Switches with 48 10/100/1000 ports.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The HP 2920 Switch Series consists of five switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ and 2920-48G 740W PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity. In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking. Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the HP 2920 Switch Series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.
**Quality of Service (QoS)**
Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
**Connectivity**
Flexible 10 Gb/s Ethernet connectivity: up to four optional 10-Gigabit ports (SFP+ and/or 10GBASE-T)
**Performance**
Energy-efficient design: High-efficiency power supplies: 80 PLUS Silver Certified power supply increases power savings. Energy-efficient Ethernet (EEE) support: reduces power consumption in accordance with IEEE 802.3az.
**Software-defined networking**
OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
**Convergence**
• IP multicast snooping and data-driven IGMP: automatically prevent flooding of IP multicast traffic
**Resiliency and high availability**
IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w
**Management**
• SNMPv1, v2, and v3: provides complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption
leaflet ( Engels ) Product Brochure
leaflet ( Engels ) Product Brochure
leaflet ( Engels ) Product Brochure
Specifications
| Jumbo frames support | Yes |
|---|---|
| Latency (1 Gbps) | 3,3 µs |
| Latency (10 Gbps) | 3,2 µs |
| Latency (10-100 Mbps) | 9 µs |
| MAC address table | 16000 entries |
| Packet buffer memory | 11,25 MB |
| Switching capacity | 176 Gbit/s |
| Throughput | 130,9 Mpps |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Stackable | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Heat dissipation | 239 BTU/h |
| Operating relative humidity (H-H) | 15 - 95 procent |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage relative humidity (H-H) | 15 - 95 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| Switching optical modules type | 40 Gigabit Ethernet |
| Built-in processor | Yes |
| Flash memory | 1024 MB |
| Internal memory | 512 MB |
| Memory type | SDRAM |
| Processor frequency | 625 MHz |
| Processor model | ARM11 |
| Virtual stacking (units) | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 70 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | J9728A-RFB |
| EAN | 5712505921210 |
