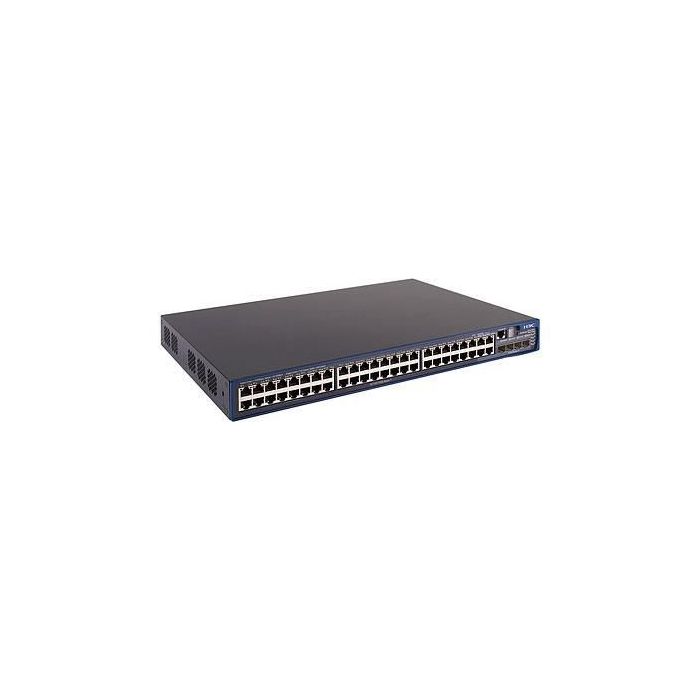

Hewlett Packard Enterprise 5500-48G - Gigabit Ethernet, RJ-45, 256MB SDRAM, 32MB flash, 3.2 µs, 192 Gbps, 4500g, Black
Leverbaar op bestelling
These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks, or in the core layer of SMB networks.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks, or in the core layer of SMB networks. The HP 5500 EI Switch Series is comprised of Layer 2/3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traffic prioritization technologies to enhance applications on convergent networks. With complete IPv4/IPv6 dual-stack support, the series provides a migration path from IPV4 to IPV6. The series has hardware support for IPV6. Designed for increased flexibility, these switches are available with 24 or 48 Gigabit Ethernet ports. Power over Ethernet (PoE) and non-PoE models are available with optional GbE and 10 GbE expansion capability. The all-fiber model with dual power supplies is ideal for applications that require the highest availability.
**Quality of Service (QoS)**
• Storm restraint: allows limitation of broadcast, multicast, and unknown unicast traffic rate to cut down on unwanted broadcast traffic on the network
**Management**
• Friendly port names: allow assignment of descriptive names to ports
**Connectivity**
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
**Performance**
• Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput
**Resiliency and high availability**
• Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance
**Layer 2 switching**
• 32K MAC addresses: provide access to many Layer 2 devices
**Layer 3 services**
• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet
Specifications
| Maximum data transfer rate | 1 Gbit/s |
|---|---|
| Packet buffer memory | 4 MB |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 192 Gbit/s |
| Certification | RoHS |
| Electromagnetic compatibility | FCC, VCCI, EN, ICES, ANSI, ETSI, AS/NZS |
| Form factor | 19U |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | UL, EN, IEC, CAN/CSA |
| Switch type | Managed |
| Web-based management | Yes |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Spanning tree protocol | Yes |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 0 - 45 °C |
| Connectivity technology | Wired |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Latency | 3.2 µs |
| Networking features | Gigabit ethernet |
| Flash memory | 32 MB |
| Internal memory | 256 MB |
| Memory type | SDRAM |
| Basic switching RJ-45 Ethernet ports quantity | 49 |
| Combo SFP ports quantity | 4 |
| Fiber optic connector | SFP |
| SFP/SFP+ slots quantity | 4 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 115 W |
| Power over Ethernet (PoE) | No |
| Management protocols | LLDP, STP, SNMPv1/v2c/v3, SMIv2 |
| IGMP snooping | Yes |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | JD375A-RFB |
| EAN | 5711783477259 |
