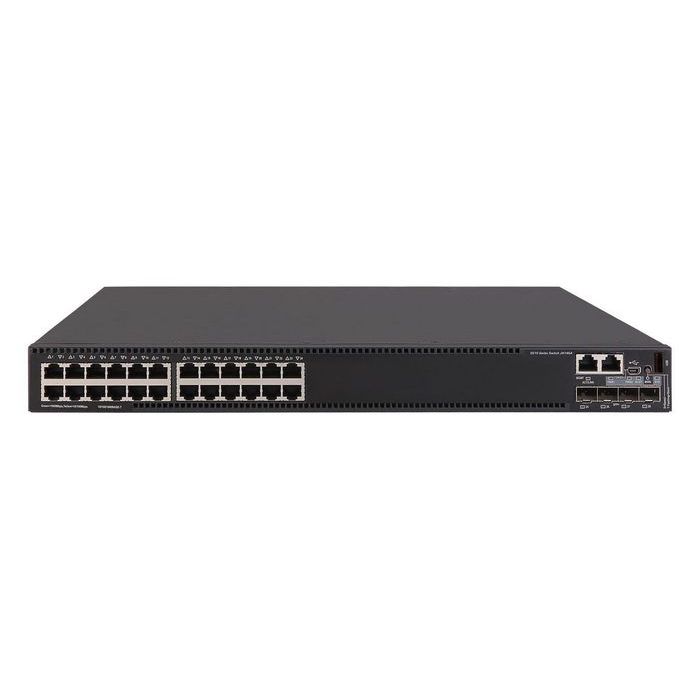

Hewlett Packard Enterprise FlexNetwork 5510 24G PoE+ 4SFP+ HI 1-slot Switch
Leverbaar op bestelling
The HPE FlexNetwork 5510 HI Switch Series comprises Gigabit Ethernet switches that deliver outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The HPE FlexNetwork 5510 HI Switch Series comprises Gigabit Ethernet switches that deliver outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks. The switches can also be used in the core layer of SMB networks. With Intelligent Resilient Fabric (IRF) support and available dual power supplies, the HPE FlexNetwork 5510 HI Series Switch can deliver the highest levels of resiliency and manageability. In addition, the PoE+ models provide up to 1440 W of PoE+ power with the dual power supply configuration. Designed with four fixed 10GbE ports and supports additional modular uplinks, these switches can provide up to six 10 GbE uplink ports. With complete IPv4/IPv6, OpenFlow, and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks.
leaflet ( Engels ) Product Brochure
Specifications
| Jumbo frames support | Yes |
|---|---|
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| MAC address table | 32768 entries |
| Packet buffer memory | 4 MB |
| Switching capacity | 288 Gbit/s |
| Throughput | 214 Mpps |
| Airflow direction | Front-to-back airflow |
| Form factor | 1U |
| Rack mounting | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1AX, IEEE 802.3, IEEE 802.3at, IEEE 802.3u |
| VLAN support | Yes |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Memory type | SDRAM |
| Noise level | 57,6 dB |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 650 W |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 740 W |
| Routing protocols | BGP, BGP4+, OSPF, OSPFv3, RIP, RIPng |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication |
| DHCP features | DHCP server, DHCP snooping, DHCPv6 snooping |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | JH147AR |
