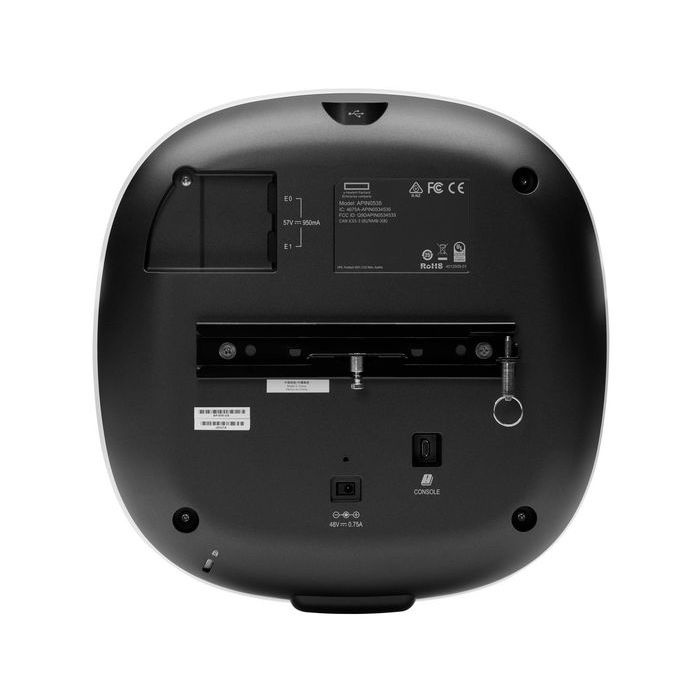

Hewlett Packard Enterprise Aruba AP-535 (RW) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP
Op voorraad: 2 stuks
The Aruba 530 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software features are designed to deliver high performance connectivity in extreme density deployments of mobile and IoT devices.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Aruba 530 Series with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software features are designed to deliver high performance connectivity in extreme density deployments of mobile and IoT devices.
The 530 Series is designed to simultaneously serve multiple clients and types of traffic, boosting overall network performance by up to 4X versus 802.11ac APs.
In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity and WPA3 certified security.
Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.
**Enhanced performance**
Aruba's ClientMatch feature intelligently groups Wi-Fi 6 clients onto the best AP's to leverage 802.11ax multi-user capabilities.
**Smart power management**
Aruba Intelligent Power Monitoring (IPM) allows APs to operate even if existing Ethernet switches lack adequate PoE power.
**IoT and location ready**
Leverage your Wi-Fi infrastructure to support Zigbee and Bluetooth use cases, devices and applications.
other digital assets ( Frans )
other digital assets ( Engels ) Customer Reference
Specifications
| Antenna direction type | Omni-directional |
|---|---|
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5,4 dBi |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Compliance certificates | Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ISED, Low Voltage Directive (LVD) |
| Cable lock slot | Yes |
| Placement | Ceiling, Wall |
| Product colour | White |
| Recommended usage | Indoor |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps GHz |
| MACsec support | No |
| Maximum data transfer rate | 3550 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Spread spectrum method | DSSS, OFDM |
| Operating relative humidity (H-H) | 5 - 93 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 93 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| I/O ports | E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot |
| Weight (imperial) | 2,2 lbs |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later. |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power consumption (max) | 23,3 W |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | WMM, WPA, WPA2 |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | JZ336A |
| EAN | 190017232751 |
