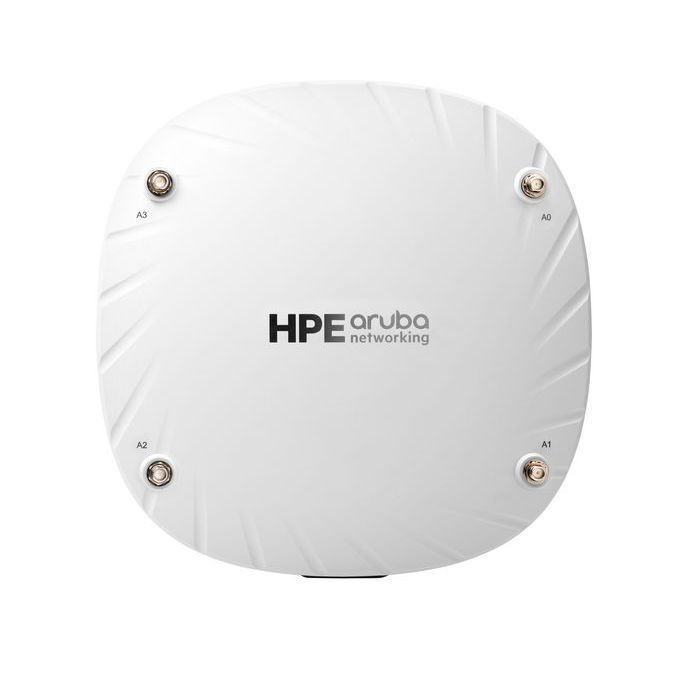

Hewlett Packard Enterprise Aruba AP-514 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus AP
Leverbaar op bestelling
The Aruba 510 series access points with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software innovations, are designed to deliver high performance connectivity for mobile and IoT devices in any environment.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Aruba 510 series access points with 802.11ax (Wi-Fi 6), combined with Aruba intelligent software innovations, are designed to deliver high performance connectivity for mobile and IoT devices in any environment.
The 510 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 4X versus 802.11ac APs.
In addition to 802.11ax benefits, the 530 Series also provide Aruba differentiated capabilities that include AI-powered RF optimization, always-on connectivity, WPA3 certified security, and unified wired and wireless policy with Dynamic Segmentation.
Additionally, Green AP mode for 802.11ax APs also leverages AI/ML capabilities for energy savings of up to 70%.
other digital assets ( Frans )
other digital assets ( Frans )
other digital assets ( Engels ) Aruba 510 Series Campus Access Points
Specifications
| Antenna connector type | RP-SMA |
|---|---|
| Antenna type | External |
| Number of connectors | 4 |
| Certification | UL2043 plenum rating Bluetooth SIG Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location |
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ISED, Low Voltage Directive (LVD) |
| Cable lock slot | Yes |
| Placement | Ceiling |
| Product colour | White |
| Recommended usage | Indoor |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 1000, 2500, 5000 |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps GHz |
| MACsec support | No |
| Maximum data transfer rate | 5375 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| MIMO | Yes |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Spread spectrum method | DSSS, OFDM |
| Operating relative humidity (H-H) | 5 - 93 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 93 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later. |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power consumption (typical) | 16 W |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | WMM, WPA, WPA2 |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | Q9H57A |
| EAN | 190017273570 |
