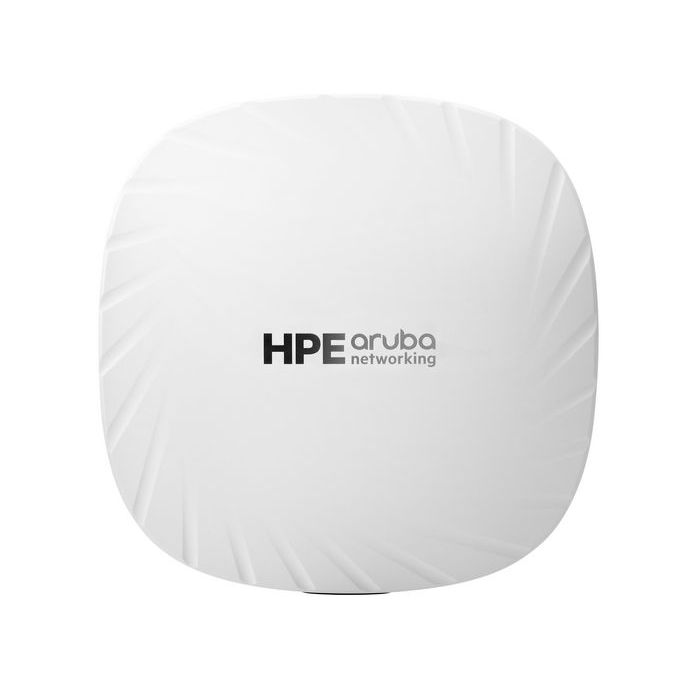

Hewlett Packard Enterprise Aruba AP-505 (RW) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP
Op voorraad: 14 stuks
The Aruba 500 series access points, with Wi-Fi 6 (802.11ax) technology and Aruba’s intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Aruba 500 series access points, with Wi-Fi 6 (802.11ax) technology and Aruba’s intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.
The 500 series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.
The 500 Series also provides differentiated capabilities that include AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
Additionally, Green AP energy savings are available when Aruba’s AI/ML capabilities are enabled.
other digital assets ( Engels ) QuickSpecs
other digital assets ( Engels ) Aruba 500 Series Campus Access Points
leaflet ( Engels ) Product Brochure
other digital assets ( Frans )
Specifications
| Antenna direction type | Omni-directional |
|---|---|
| Antenna features | Integrated antenna |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ISED, Low Voltage Directive (LVD) |
| Cable lock slot | Yes |
| Placement | Ceiling, Wall |
| Product colour | White |
| Recommended usage | Indoor |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps GHz |
| MACsec support | No |
| Maximum data transfer rate | 1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Operating relative humidity (H-H) | 5 - 93 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 93 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| I/O ports | E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot. |
| Weight (imperial) | 1,1 lbs |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8.6.0.0 or later; HPE Aruba Networking Instant OS 8.6.0.0 or later; HPE Aruba Networking Wireless Operating System 10.0.0.0 or later |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power consumption (max) | 16,5 W |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Warranty | 5 years |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | R2H28A |
| EAN | 190017357997 |
