Hewlett Packard Enterprise Gigabit Ethernet, PCI Express x4, 15W, 450g
Leverbaar op bestelling

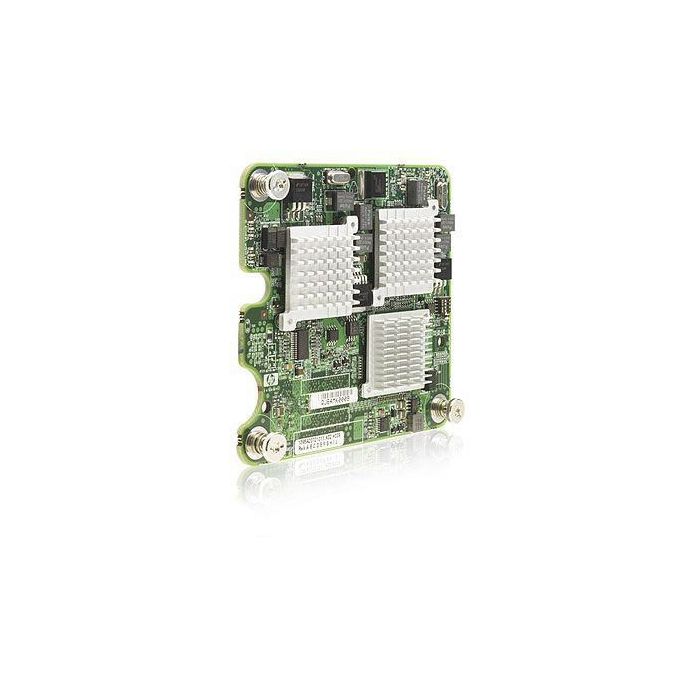

The HP NC325m features four Gigabit Ethernet ports on a single card, saving valuable server I/O slots for other purposes. The four ports provide the highest port density available for ProLiant BladeSystem servers in a single adapter.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The HP NC325m features four Gigabit Ethernet ports on a single card, saving valuable server I/O slots for other purposes. The four ports provide the highest port density available for ProLiant BladeSystem servers in a single adapter. The NC325m is ideal for virtualization, security, server consolidation, network segmentation, and other ProLiant server applications requiring maximum throughput and port density. The total aggregate throughput of four Gbps meets the needs for customers desiring high bandwidth but are not yet ready to move to 10 Gigabit Ethernet.; The x4 PCI Express NC325m is supported on all ProLiant c-Class servers in all mezzanine slots. However, if the NC325m is installed in mezzanine slot 1 of a half-height server blade, it will provide connectivity on only two of the four ports.
- Gigabit Ethernet Throughput.
- The HP NC325m PCI Express Quad Port Gigabit Server Adapter supports four gigabit Ethernet ports on a single card, saving valuable server I/O slots for other purposes. The four ports provide the highest port density available for ProLiant BladeSystem servers in a single adapter. Offers up to 2000 Mbps Ethernet transfer rate full duplex per port and is ideal for high density, mezzanine slot constrained blade servers, virtualization and security, applications, server consolidation, and increased network segmentation.
- High performance design.
- Insight software upgrade.
Specifications
| Certification | FCC (CFR 47 part 15), UL 60950,ICES-003, CSA60950, VCCI, MIC (RRL), EMC, ACA, AS/NZS3548/EN55022:1998, EN55024:1998, EN55022:1998 (CISPR 22), EN55024:1998, IEC60950:1999 (EN60950:2000) |
|---|---|
| Internal | Yes |
| Safety | UL, CE, EN 60590 |
| Full duplex | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| Data transfer rate | 1 Gbit/s |
| Power supply | 15 W |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 4 |
| Host interface | PCI Express |
| Interface | Ethernet |
| Sustainability certificates | RoHS |
| Compatible operating systems | Novell NetWare 6.5, Novell Open Enterprise Server x86, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Windows 2003 and 2008 (32-bit and 64-bit) |
| Compliance certificates | RoHS |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | RP001225520 |
| EAN | 5711783668336 |
