Hewlett Packard Enterprise 2-port, PCIe, 10Gb/s, Ethernet, FC, Emulex BE3, 128MB, 10W Max
Leverbaar op bestelling

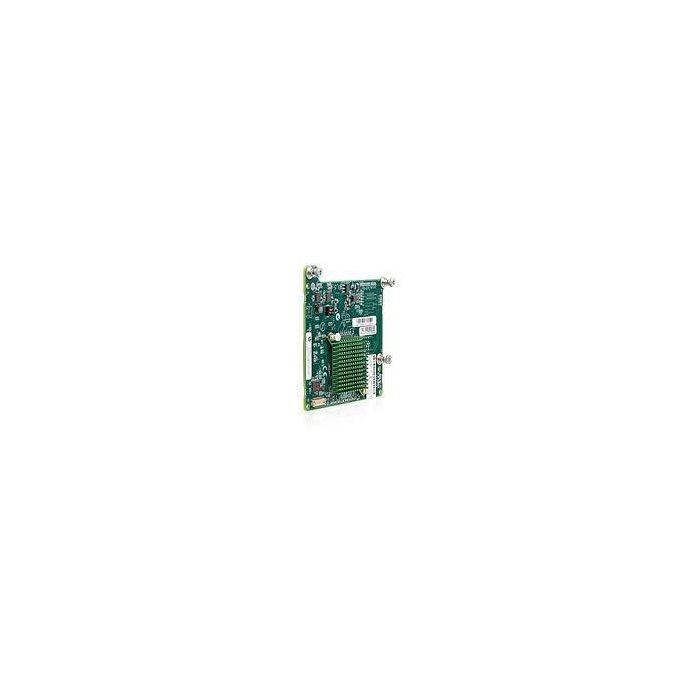

The HP FlexFabric 10Gb 2-port 554M adapter combines the functionality of Ethernet and Fibre Channel (FC) onto a single mezzanine Type A form factor designed for the HP BladeSystem c-Class Gen8 platform.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The HP FlexFabric 10Gb 2-port 554M adapter combines the functionality of Ethernet and Fibre Channel (FC) onto a single mezzanine Type A form factor designed for the HP BladeSystem c-Class Gen8 platform. It optimizes network and storage traffic with hardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE), and Fibre Channel.
The HP 554M supports Virtual Connect Flex-10, increasing bandwidth for virtualized servers.
One platform for network and storage connection. Multiple protocol offloads for optimum server efficiency. Industry leading performance per watt for power savings. Easy to deploy and manage. Optimized for convergence – one network lowers capital and operating expenses.
Specifications
| Certification | ACA, AS/NZS3548/EN55022:1998, EN55024:1998, CE, EN 60590, EN55022:1998 (CISPR 22), EN55024:1998, IEC60950:1999 (EN60950:2000), FCC (CFR 47 part 15) /UL 60950, ICES-003 / CSA60950, MIC (RRL), EMC Registration, UL/cUL, VCCI |
|---|---|
| Chipset | Emulex BE3 |
| Internal | Yes |
| Product colour | Green |
| Bandwidth | 40 Gbit/s |
| Ethernet LAN | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x |
| Wi-Fi | No |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 0 - 55 °C |
| Data transfer rate | 10 Gbit/s |
| Internal memory | 128 MB |
| Ports quantity | 2 |
| Wireless connection | No |
| Compatible memory cards | Not supported |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Parallel ports quantity | 0 |
| Power consumption (typical) | 10 W |
| Sustainability certificates | RoHS |
| Compatible operating systems | indows Server 2008 SP2, R2 (x86 / x64), Microsoft Windows Hyper-V, R2 SP1, RHEL 5, 6, SLES 10, 11, Solaris 10 (x86 / x64) |
| Compliance certificates | RoHS |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | RP001229936 |
| EAN | 5711783710967 |
