Hewlett Packard Enterprise 2 Ports, PCIe, 10Gb/s, Emulex BE3, 128MB, 10W
Leverbaar op bestelling

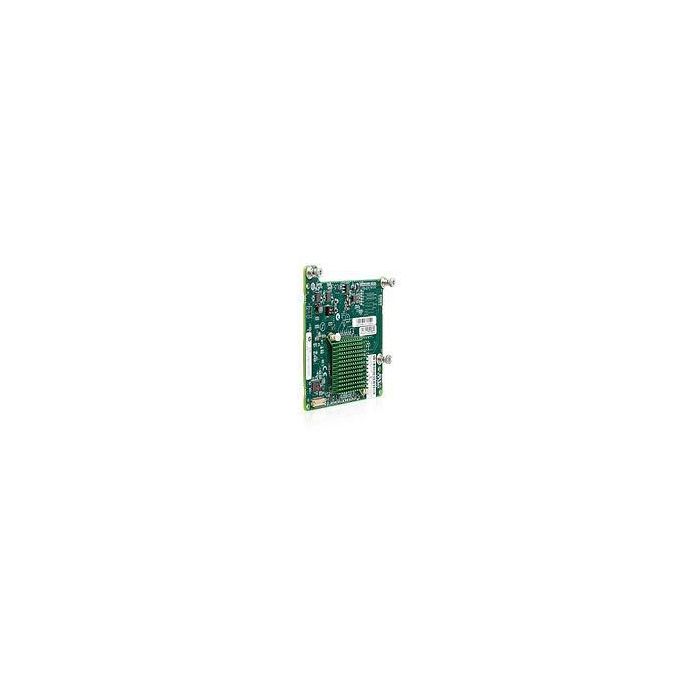

The HP Flex-10 10Gb 2-port 552M adapter, a mezzanine Type A card designed for the HP BladeSystem c-Class Gen8 platform, delivers the performance benefits of 10Gb Ethernet with the scalability and flexibility that HP Virtual Connect and Flex-10 provide.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The HP Flex-10 10Gb 2-port 552M adapter, a mezzanine Type A card designed for the HP BladeSystem c-Class Gen8 platform, delivers the performance benefits of 10Gb Ethernet with the scalability and flexibility that HP Virtual Connect and Flex-10 provide. It supports up to 8 FlexNICs per adapter, with each FlexNIC having a unique MAC address and identity on the LAN. Bandwidth can be uniquely allocated for virtual server functions and applications. Hardware acceleration and offloads for stateless TCP/IP and TCP Offload Engine (TOE) enable optimum use of CPU resources.
128MB
The HP 552M supports Virtual Connect Flex-10, increasing bandwidth for virtualized servers.
One platform for network and storage connection. Multiple protocol offloads for optimum server efficiency. Industry leading performance per watt for power savings. Easy to deploy and manage. Supports receive-side scaling (RSS) for the efficient distribution of network receive processing across multiple CPUs in multiprocessor systems.
Specifications
| Certification | ACA, AS/NZS3548/EN55022:1998, EN55024:1998, EN55022:1998 (CISPR 22), EN55024:1998, IEC60950:1999 (EN60950:2000), FCC (CFR 47 part 15) /UL 60950, ICES-003 and CSA60950, MIC (RRL), EMC Registration, VCCI |
|---|---|
| Chipset | Emulex BE3 |
| Internal | Yes |
| Product colour | Green |
| Bandwidth | 40 Gbit/s |
| Ethernet LAN | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x |
| Wi-Fi | No |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | 0 - 55 °C |
| Data transfer rate | 10 Gbit/s |
| Internal memory | 128 MB |
| Ports quantity | 2 |
| Wireless connection | No |
| Compatible memory cards | Not supported |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Power consumption (typical) | 10 W |
| Sustainability certificates | RoHS |
| Compatible operating systems | Microsoft Windows Hyper-V, R2 SP1, RHEL 5, 6, 7, SLES 10, 11, Solaris 10 (x86 and x64), Windows Server 2008 SP2, R2 (x86 / x64) |
| Compliance certificates | RoHS |
| Warranty | 1 year |
| Merk | Hewlett Packard Enterprise |
|---|---|
| Part number (MPN) | RP001230779 |
| EAN | 5711783719007 |
