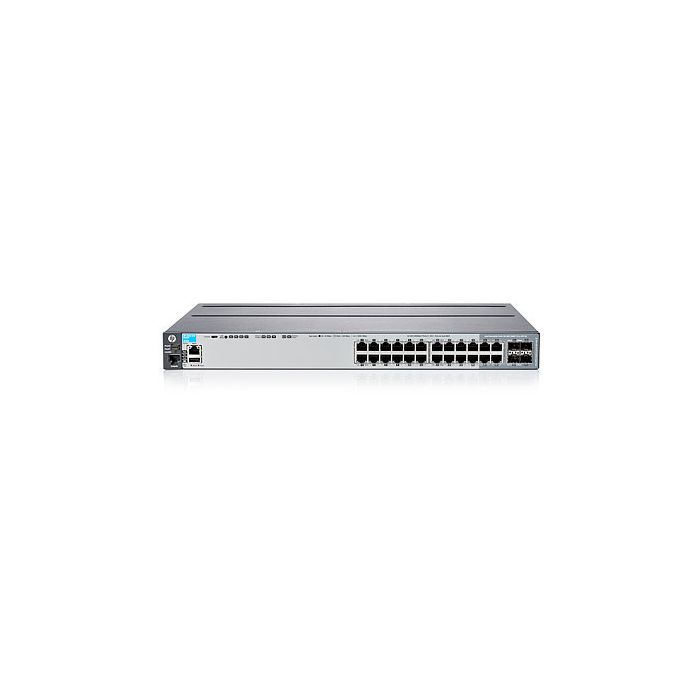

HP 2920-24G Managed L3 Gigabit Ethernet (10/100/1000) Grijs

The HP 2920 Switch Series consists of five switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ and 2920-48G 740W PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity. In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking. Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the HP 2920 Switch Series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.

Quality of Service (QoS)

• Traffic prioritization (IEEE 802.1p): voor real-time classificatie van netwerkverkeer in 8 prioriteitsniveaus, ondergebracht in 8 wachtrijen


Interfaces

• Flexible 10 Gb/s Ethernet connectivity: up to four optional 10-Gigabit ports (SFP+ and/or 10GBASE-T)


Prestaties

• Energy-efficient design: High-efficiency power supplies: 80 PLUS Silver Certified power supply increases power savings. Energy-efficient Ethernet (EEE) support: reduces power consumption in accordance with IEEE 802.3az.


• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths


Convergence

• IP multicast snooping and data-driven IGMP: automatically prevent flooding of IP multicast traffic


Resiliency and high availability

• IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w


Management

• SNMPv1, v2, and v3: provides complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption

• Managed L3
• Aantal basis-switching RJ-45 Ethernet-poorten: 24
• Switchingcapaciteit: 128 Gbit/s
• Rack-montage Stapelbaar

Specificaties

Switch type	Managed
Switch-laag	L3
Aantal basis-switching RJ-45 Ethernet-poorten	24
Type basis-switching RJ-45 Ethernet-poorten	Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten	4
Full duplex	Ja
Datastroombeheer	Ja
Auto MDI/MDI-X	Ja
Auto-sensing	Ja
VLAN=ondersteuning	Ja
Switchingcapaciteit	128 Gbit/s
Throughput	95,2 Mpps
Latentie (1 Gbps)	3,3 µs
IGMP snooping	Ja
Rack-montage	Ja
Stapelbaar	Ja
Kleur van het product	Grijs
Type processor	Ja
Processormodel	ARM11
Frequentie van processor	625 MHz
Intern geheugen	512 MB
AC-ingangsspanning	100 - 240 V
AC-ingangsfrequentie	50 - 60 Hz
