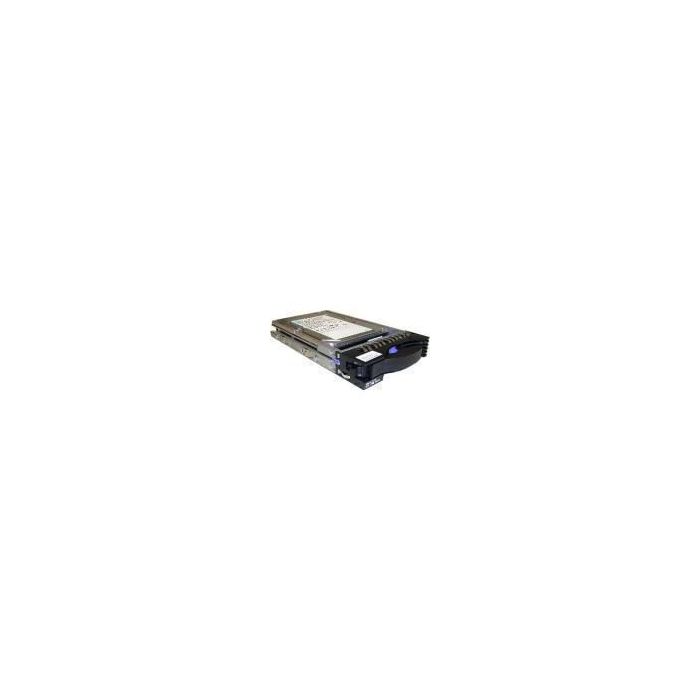

IBM 36.4GB, 3.5", Ultra320 SCSI, 10000 RPM, Hot-Swap

Deploy IBM eServer xSeries servers and IntelliStation workstations using high-speed, next-generation Ultra320 SCSI hard disk drive (HDD) technology.

**Features include:**

-Ultra320 SCSI interface - Wide bandwidth for multi-drive, concurrent, streaming data transfers.

-One-inch, slim-line form factor - Optimize storage capacity of supported systems.

-10K-rpm HDDs - Deliver solid reliability and excellent performance

Predictive Failure Analysis (PFA) - Can alert you of a problem before it occurs.

-Rigorous testing in heavy network simulation test suites.

-Available hot-swap and standard versions:

--80-pin, SCA-2 compliant hot-swap drive trays with convenient front-side labeling - Support xSeries servers with Ultra320-compatible, hot-swap bays.

--68-pin standard drive - Supports xSeries servers and IntelliStation workstations without hot-swap drive bays.

The evolution of Ultra320 SCSI hard drive technology is now available to meet your IBM eServer xSeries or IntelliStation data storage requirements. These high-speed SCSI HDDs satisfy a range of high-performance storage requirements.

Each drive is contained in a 3.5-inch, 1-inch high, slim-line form factor that allows maximum installations in supported xSeries servers and IntelliStation workstations. These hard disk drives (HDDs) are engineered to support advanced enterprise server and workstation applications.

**High-Density and Performance**

Through advanced areal density technology, these HDDs store a large amount of data on each platter. This enables high data storage capacities on supported systems, while providing excellent storage subsystem performance. Performance characteristics include:

-Ultra320 SCSI interface - Supports instantaneous interface data transfers of up to 320 MBs per second.

-10,000-rpm spindle speed.

-3.00ms average latency and 4.7ms typical average read seek time.

**Reliability**

-SCA-2 compliant - HDDs dock directly into the hot-swap backplane of supported Ultra320-compatible servers.

-Predictive Failure Analysis (PFA) - Can alert you of most impending drive failures, so replacements can be made before a problem occurs.

-Rigorously tested through the ServerProven program - Provides confidence that your xSeries and IntelliStation storage subsystem is compatible and will function reliably.

Specifications
