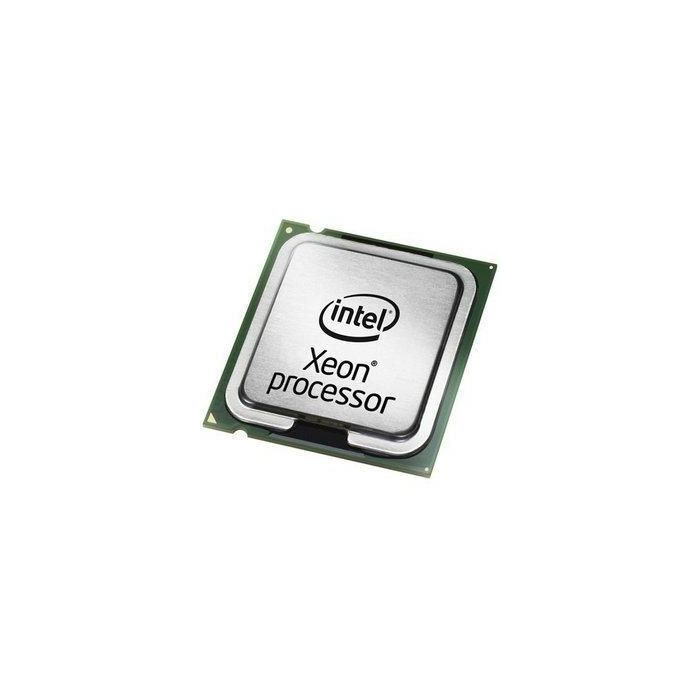

IBM Intel Xeon Processor E5540 (8M Cache, 2.53 GHz, 5.86 GT/s Intel QPI)
Leverbaar op bestelling
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.Intel® Turbo Boost Technology dynamically increases the processor's…
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
Specifications
| CPU configuration (max) | 2 |
|---|---|
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Number of Graphics & IMC Die Transistors | 731 M |
| Number of Processing Die Transistors | 731 M |
| Physical Address Extension (PAE) | Yes |
| Processing Die size | 263 mm² |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 144 GB |
| Memory channels | Triple-channel |
| Memory clock speeds supported by processor | 1066, 800 |
| Memory types supported by processor | DDR3-SDRAM |
| Tcase | 76 °C |
| Bus type | QPI |
| Component for | Server/workstation |
| CPU multiplier (bus/core ratio) | 19 |
| L3 cache speed | 2,53 GHz |
| Memory bandwidth supported by processor (max) | 25,6 GB/s |
| Number of QPI links | 2 |
| Package type | Tray |
| Processor base frequency | 2,53 GHz |
| Processor boost frequency | 2,8 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor code | SLBF6 |
| Processor codename | Nehalem EP |
| Processor lithography | 45 nm |
| Processor model | E5540 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5500 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 8 |
| Stepping | D0 |
| System bus rate | 5,86 GT/s |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Processor package size | 42.5 cm |
| Warranty | 1 year |
| Merk | IBM |
|---|---|
| Part number (MPN) | 44T1868-RFB |
